Overview

The A-H2 supports A-BUS Amplified Keypads and Amplified Volume Controls. An optional Status feature indicates on your keypads when the source receiver is on and turns your keypads off when it’s turned off.

Ideal for adding a couple of rooms to a stereo system, the A-H2 can also link to an A-H4 hub to add zones to an A-BUS system. The A-H2 is designed for surface mounting, such as on a shelf or in a rack with your source equipment.

Features

• Works with Russound A-K4 Amplified Keypads
• Provides source status indication on your keypads
• Mounts unobtrusively near your audio equipment, on a shelf or in a rack or cabinet
• Includes IR emitter jacks for four source components
• Links to other hubs for more zones

Specifications

• Shipping Dimensions: 2.8″ (W) x 2.3″ (H) x 7.0″ (D) (7.0 x 5.7 x 17.8 cm)
• Shipping Weight: 1.1 lbs (0.5 kg)

• Audio Input Connectors: Line-level stereo RCA jacks

• Expansion Input Connector: RJ-45 jack, T568A standard

• IR Emitter Connectors: (4) 1/8″ (3.5 mm) TS jacks, tip positive

• Keypad Outputs: (2) RJ-45 jacks, T568A standard

• Power Connector: 2.5 mm jack, tip positive

• Power Requirement(s): 24 VDC 2.5 A (use Russound A-PS power supply)

• Status Power (optional): 12 VDC 100 mA

• Status Power Connector: 2.5 mm jack, tip positive

Documents

A-H2 Product Manual: A-H2 Product Manual


Product images

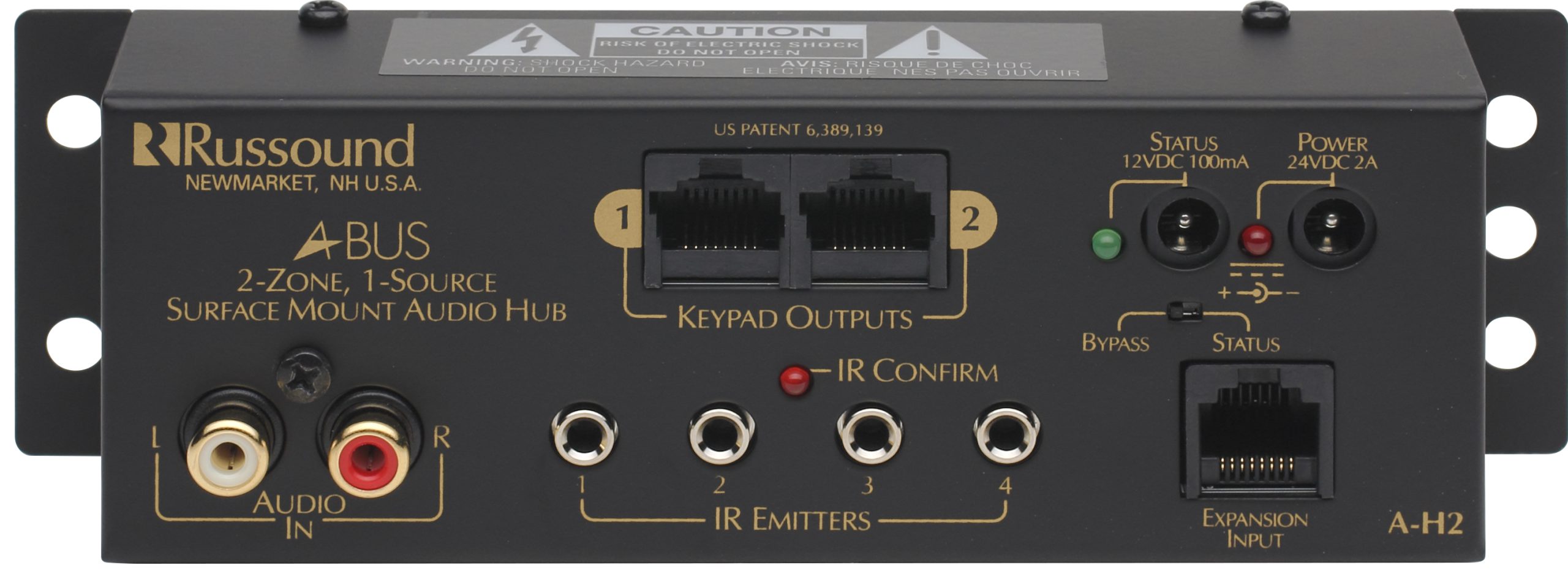

A-H2: A-H2
