Features
- Just push a button to switch sources or speakers
- Can be used to switch amplifiers or speakers – your choice
- Detachable snap connectors are color coded for easy wire termination
- Rugged construction and a 10-year warranty assure long life
AB-1.2 In-wall, Dual Source Speaker Selector
The versatile AB-1.2 in-wall selector switch allows you to power a single pair of speakers with either of two amplifiers or power either of two speaker pairs with a single amplifier. Easy to install and simple to use, it’s ideal for situations where you need a local source, such as stereo receiver, to share a pair of room speakers with your whole-house audio system.
Specifications
- Shipping Dimensions: 2.7″ (W) x 4.4″ (H) x 2.2″ (D), (6.8 x 11.2 x 5.7 cm)
- Shipping Weight: 0.2 lbs (0.1 kg)
- Connector(s): Detachable 4-pole color-coded snap connectors
- Dimensions in Wall Box: 1.0″ (W) x 2.75″ (H) x 1.75″ (D), (2.5 x 7.0 x 4.5 cm)
- Max Wire Size: 14 AWG (1.9 mm)
- Power Handling: 150 watts RMS per channel
Documents
AB-1.2 Product Manual: AB-1.2 Product Manual.pdf
Product Images

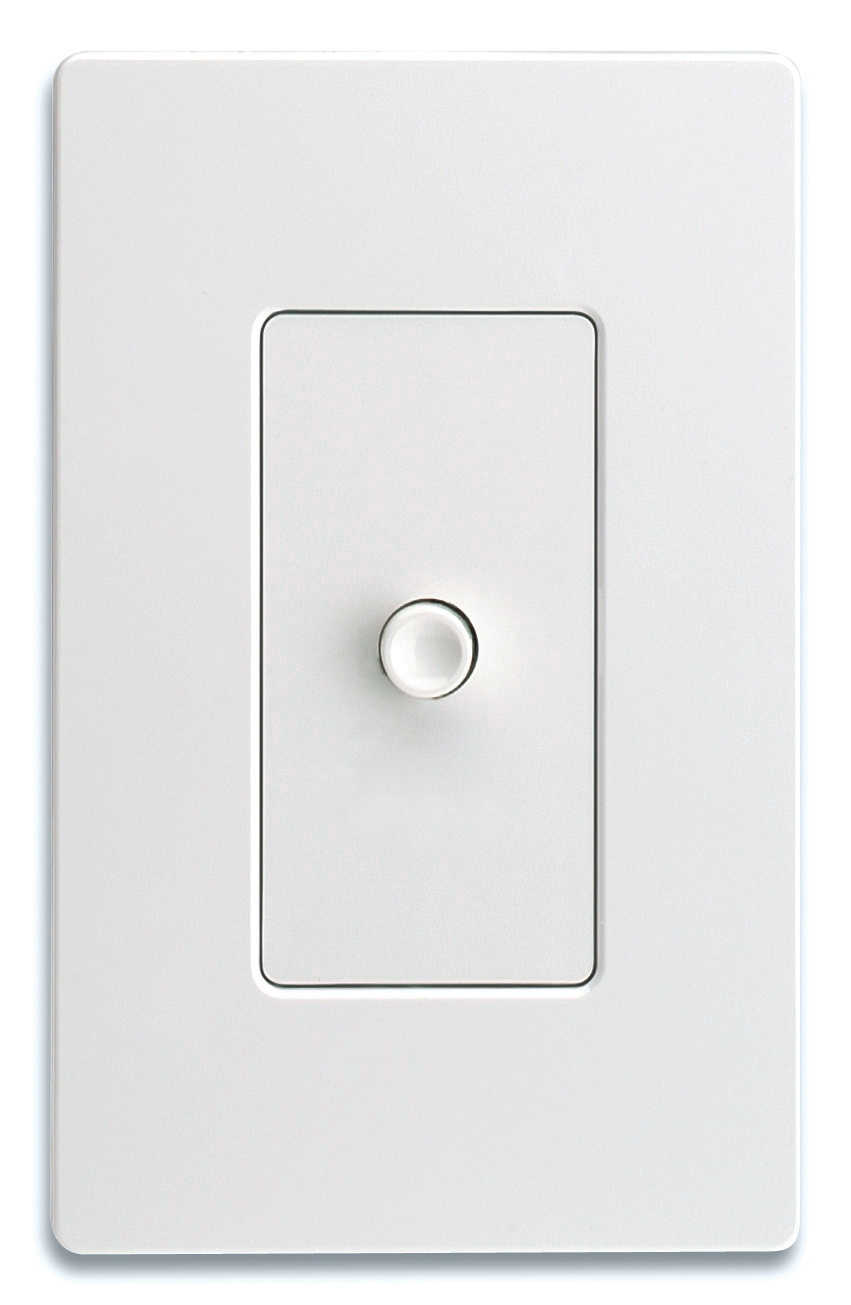

AB-1.2 Image: AB-1 White.jpg
