ADP-1.2 Speaker to Line-Level Adapter

Recommended for use with CAA66 and MCA-66 to obtain line level outputs for zones without pre-amp outputs. Color-coded detachable 14-gauge snap connectors. Not for use with digital amplifiers.

ADP-1.2 Product Manual: ADP-1.2 Product Manual.pdf

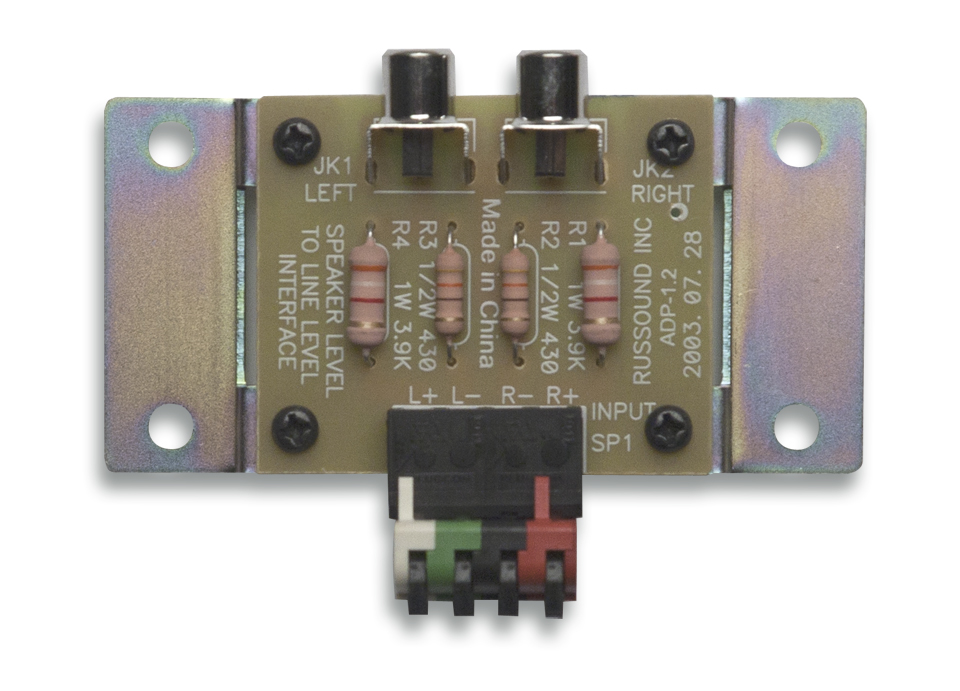

ADP-1.2 Image: ADP-1.2.jpg

Features

Attenuates speaker-level audio from amp/receiver to line-level audio
Connects between amp/receiver and high-powered amplifier
Screwless removable snap connectors for easy connections
Accepts up to 14-gauge wire

Specifications

Power: 250 W/ch RMS continuous, 500 W/ch peak
Attenuation: -30dB
Input Connector: Screwless removable snap connector
Wire Size: Up to 14-gauge wire
Output Connectors: RCA female
Dimensions: 2-1/2 x 3-3/4 inches
