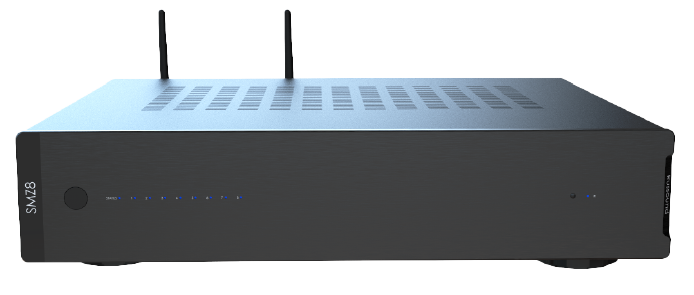

Our most powerful multi-zone controller ever!

With its powerful built-in audio streamer, HDMI input, and support for both Apple AirPlay and Google Cast, the SMZ8 checks all of the boxes and is designed to be the backbone of all of your audio installations.

Integrated Audio Streamer

Built-in Hi-Res (192khz/24-bit) MBX audio streamer provides easy access to the most popular streaming services as well as casting from AirPlay, Google Cast, Spotify Connect, and Bluetooth and even local music stored on a USB stick or external hard drive. Fully compatible with Russound’s MBX-Series, feel free to add additional MBX-PRE streaming audio players so that everyone in the home can have their own personal audio streamer, available to them whenever they need it.

Stunning Audio & Video Synchronization
HDMI Integration: Picture yourself watching the big game on a wide screen in the living room, with perfectly synchronized audio playing throughout every room in the house. The SMZ8 effortlessly brings this experience to life, ensuring everyone feels immersed in the action.

Seamless Installation & DSP Capabilities
Built-in DSP with Speaker Presets: Pre-configured presets for Russound speakers streamline the installation process, making it easier than ever to configure Russound systems.

7-Band Graphic EQ & Pink Noise Generator
Fine-tune the sound to perfection with a 7-band graphic equalizer, complete with a pink noise generator for custom calibration in any zone.

True Freedom in Placement
Networked Flexibility: For larger homes or multi-floor installations, you can place multiple SMZ8 units wherever the wiring allows. With each SMZ8 on the home network, they communicate seamlessly, no matter the location. You only need to extend audio sources, giving you the ultimate flexibility in placement.

Unmatched Power
High Power Output: Delivering 50W per channelv, the SMZ8 is the most powerful controller in Russound's history, providing enough power to fill any space with crisp, high-quality sound.

Built-In Wi-Fi for Ultimate Convenience
Wi-Fi Capability: For those tricky installations where running a network cable is impractical, the SMZ8’s built-in Wi-Fi offers a hassle-free solution.

The SMZ-Series is designed to provide a powerful, flexible, and user-friendly whole-home audio experience. With its extensive features, it meets the needs of both homeowners and installers, offering a seamless blend of high performance and convenience.

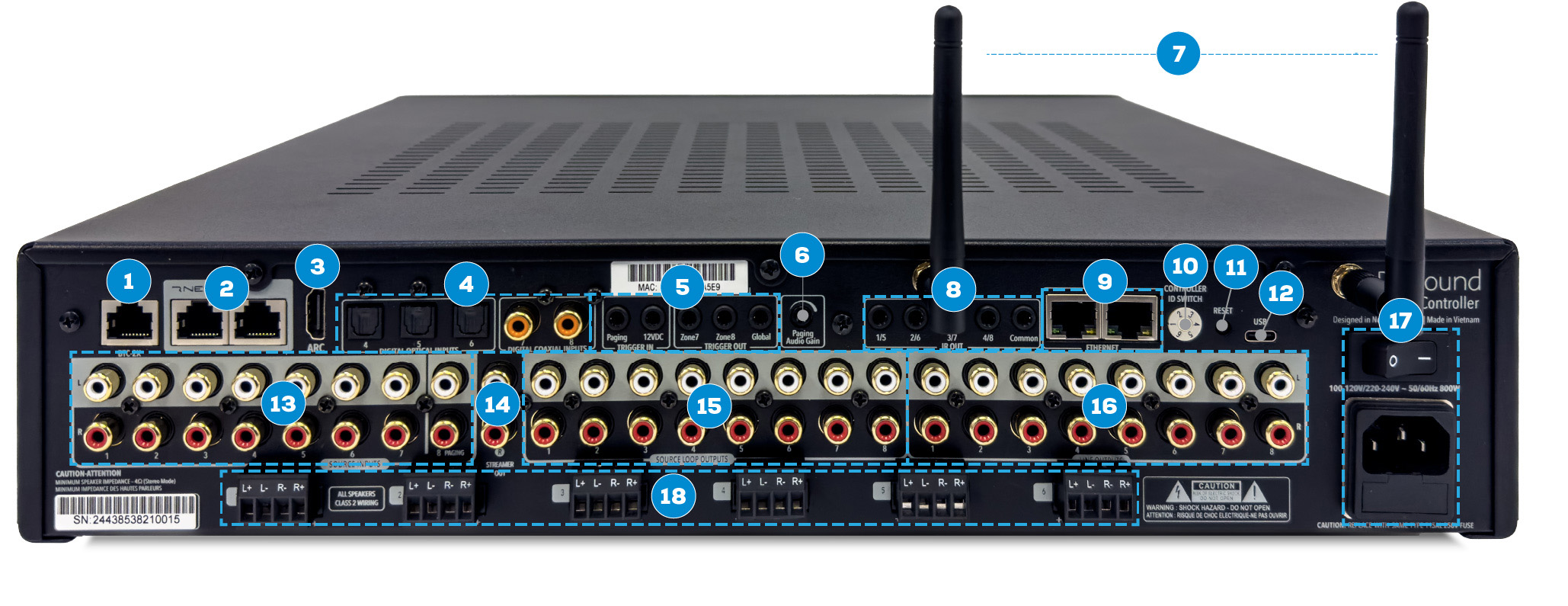

1. BTC-2X Input – Use with the optional Russound BTC-2X for adding an external Bluetooth receiver up to 500’ away from the SMZ8 so that distance from the SMZ8 never stops anyone from using Bluetooth wherever or whenever they would like
2. RNET Ports – Digital Connections for adding additional Russound audio sources such as the BTC-2 Bluetooth Source Kit
3. ARC Input – Connect to your TV’s ARC port for easily listening to your TV’s audio output from anywhere in the home without lip synch issues or lag
4. Digital Inputs – With an assortment of digital optical inputs (3), and digital coax inputs (2), feel free to connect your favorite audio sources, no matter their connection type
5. 12V Triggers – Perfect for keeping the SMZ8 active when sharing sources among rooms or for activating other devices like additional amplifiers for larger zones or your outdoor areas
6. Paging Gain Control – When using a paging source in the home, use this to tailor the volume level appropriately
7. Wi-Fi/Bluetooth Antennas – Removable external diversity antennas. Russound always recommends a wired ethernet connection whenever possible, but the SMZ8 fully supports Wi-Fi 802.11ac (2.4GHz, 5GHz)
8. IR Outputs – 4 independent ports and 1 global IR output for sending IR control signals to connected source devices
9. Dual Ethernet Port with Built-In Ethernet Switch – Use this as an Ethernet port saver. Connect the SMZ8 to your network and then use the 2nd port to connect an additional network device

10. Controller ID Switch – Up to 6 SMZ8 controllers can be combined in a single system that supports 8 audio sources in up to 48 zones of audio. Use this switch to set a unique number for each controller in the system
11. Intelligent Reset Switch – Use to reboot the SMZ8, reset the Wi-Fi, or even perform a full factory reset depending on how long the button is pressed
12. USB-C Port – Use for listening to USB audio or for connecting an external USB hard drive
13. Analog Audio Inputs – Stereo RCA Analog Inputs (8) allow easy connection of audio sources
14. Streamer Audio Output – This dedicated streamer analog stereo output allows for simple sharing with multiple SMZ8 controllers
15. Analog Loop Outputs – Stereo RCA Analog Loop outputs for sharing audio sources with multiple SMZ8 controllers or other devices
16. Zone Outputs – Stereo RCA Analog outputs for adding additional amplification for any larger zones or outdoor areas. Zones 1-6 are variable line outs and Zones 7-8 have an option for either fixed or variable outputs
17. AC Power Input and Power Switch – 100-120VAC ~60Hz or 220-240VAC~50Hz
18. Speaker outputs – Convenient screw-down, removable connectors for Zones 1-6 with a powerful 50W per channel @8 ohms, 4-ohm minimum
