ALT-70V-50, 50-Watt 70V Volume Control

Category: Commercial Audio

The ALT-70V-50 volume control is designed to add local or zone volume control to any 70V audio system.  The removable screw-down speaker connector accepts up to 12ga wire and the 11 steps of attenuation with make-before-break connections means that you’ll always have smooth control over the system volume.  It can be used with both 25V and 100V systems as long as the total power does not exceed 50 watts.



  • Powerful 50-watt handling capability
  • Selects 11 steps
  • Accepts up to 12AWG cable
  • Includes white, light almond and ivory plates and knobs
  • 5-Year warranty
  • Max Wire Size: 12 AWG (2.4 mm)
  • Speaker Connection(s): 4-pole screw down accepts up to 12 gauge cable
  • Volume Control: 11 steps
  • Insertion Loss: <0.5 dB
  • Depth behind plate: 2.33 in (5.93 cm)
  • Width behind plate: 1.63 in (4.15 cm)



etl stamp

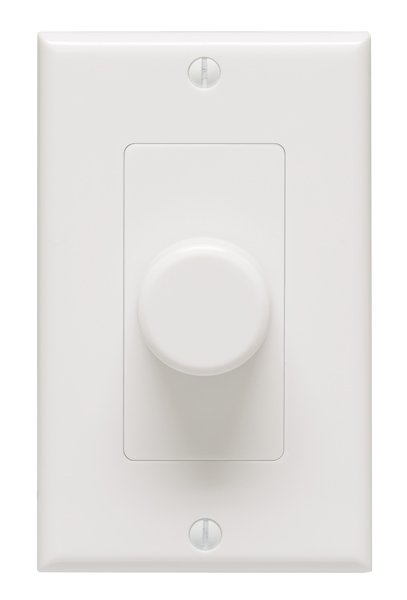

ALT-70V-50 White - Front Image:  ALT-70V-50_White.jpg

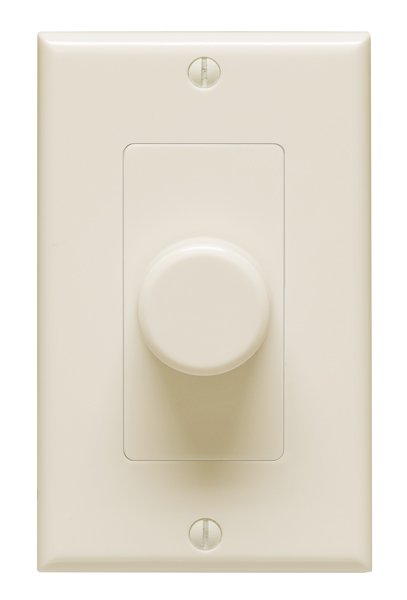

ALT-70V-50 Light Almond - Front Image: ALT-70V-50_Lt Alm.jpg

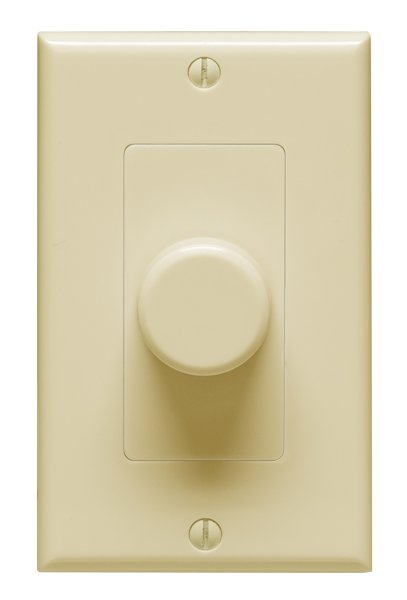

ALT-70V-50 Ivory - Front Image: ALT-70V-50_Ivory.jpg

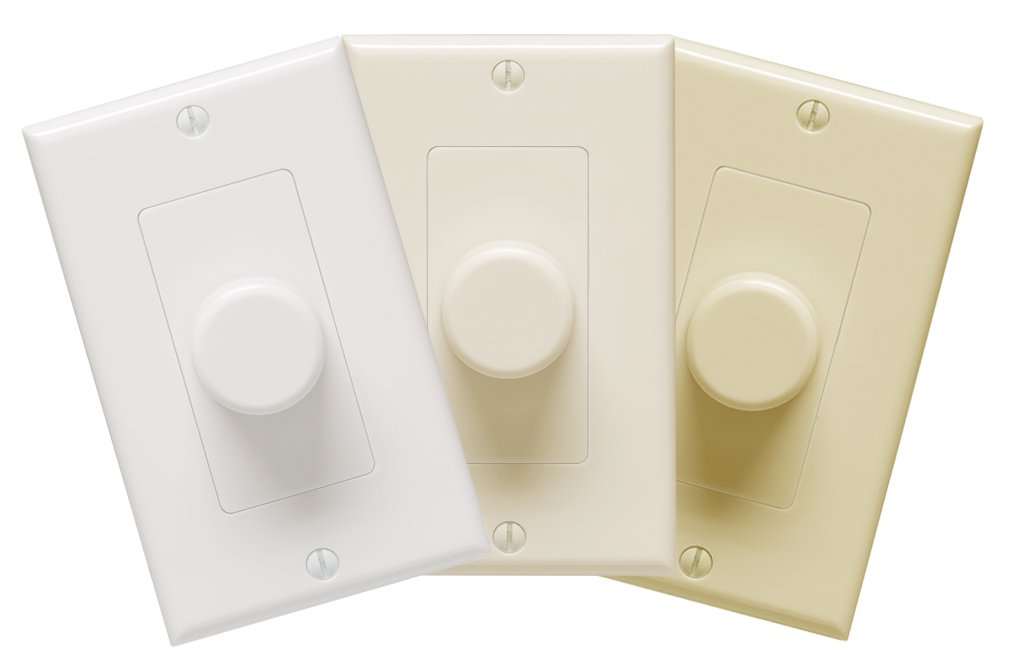

ALT-70V-50 Tricolor: ALT-70V-50_Trio.jpg

ALT-70V-50 Back: ALT-70V_Rear.png
