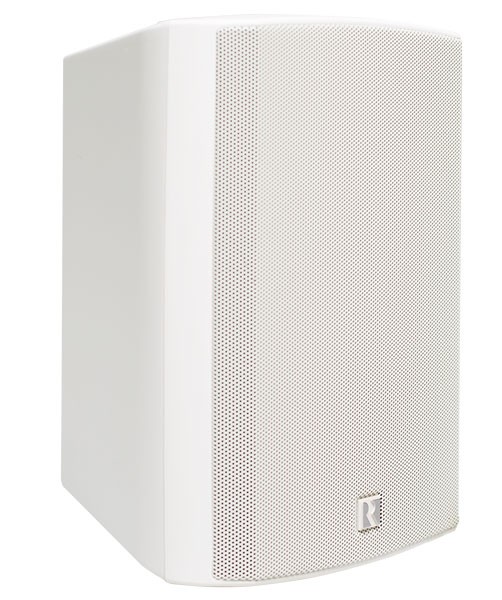

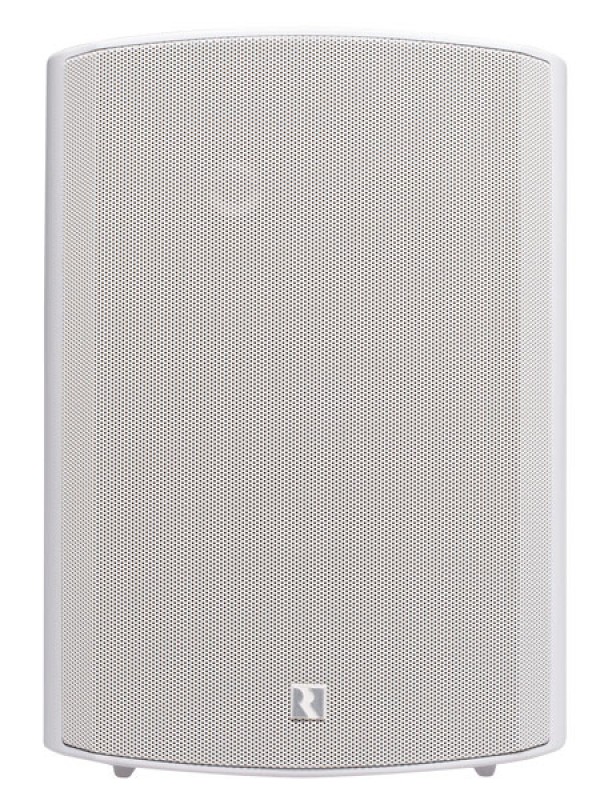

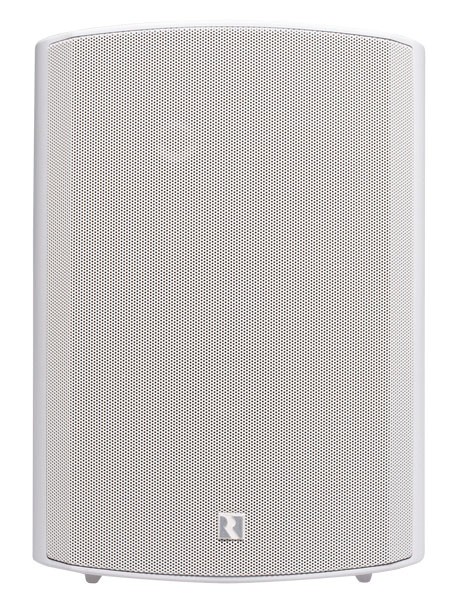

AW70V6mk2 70V/100V Surface Mount Speaker White

Category: Commercial Audio

The AW70V6mk2 speakers are designed to add high quality, custom-tailored sound for distributed audio systems using either 70V or 100V amplification.  With an easily adjustable weatherproof tap setting switch on the rear panel, these versatile speakers even include a bypass setting to allow their use as high performance 6-ohm speakers.  Their 1” titanium dome tweeters combined in a ported-cabinet design with 6.5” injection-molded polypropylene woofers, provide the audio quality that our customers have come to know and expect from Russound, while rugged enough for even the most extreme outdoor environments.



AW70V6 Bracket 1000

Based on the technology used in Russsound's OutBack series of indoor/outdoor loudspeakers, the AW70V6mk2 series of surface-mount loudspeakers are perfect for both commercial and residential applications where a 70v or 100v amplification system is being used.  Flexible mounting options allow for on-wall mounting vertically, horizontally, in corners, under eaves, on poles, and offer heavy-duty 1/4"-20 brass inserts for any compatible 3rd party mounting system.  The ported 2-way design is excellent for music and voice reproduction and the durable design and construction assures years of trouble-free operation.

  • Rugged, One-Handed Mounting Bracket
  • Long-Lasting, Gold Plated Connectors

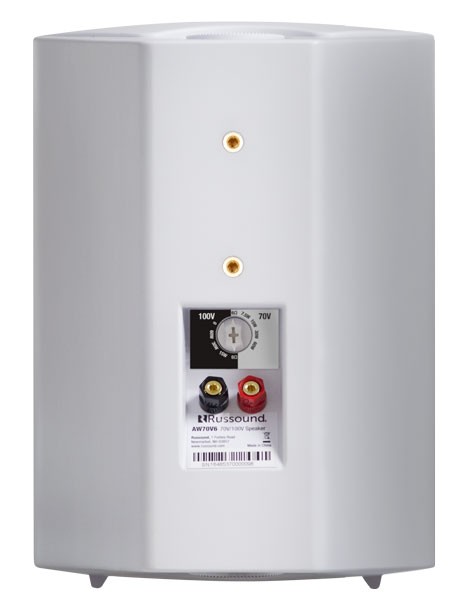

  • Easily Adjustable Tap Settings
  • Rustproof Aluminum Grilles
  • Narrow Taper for Corner Mounting
  • Sold in Pairs
  • Trusted 2-year Warranty
  • Description: 2-way Indoor/Outdoor Loudspeaker Pair
  • Woofer: 6.5” (16.51cm) Injection-Molded Polypropylene
  • Tweeter: 1” (2.54cm) Titanium Dome
  • Mounting Options: Bookshelf foot, pole, flat or corner surface
  • Dimensions: 13" x 8.75" x 8.25" (33.02 x 22.22 x 20.95 cm)
  • Wire Gauge: Up to 12ga AWG
  • Grille: Powder Coated Aluminum
  • Bracket: Aluminum
  • Bookshelf foot: Yes
  • Sensitivity: 87 dB
  • Frequency Response: (+/- 3dB): 55Hz-20kHz
  • Nominal Impedance: 6 ohm
  • Tap Settings: 70V: 7.5W, 15W, 30W, 60W | 100V: 15W, 30W, 60W | 6Ω



ce stamp

Product Manual: AW70V6mk2 Speaker Manual

Product Guide: AW70V6mk2 Product Guide

Product Dimensions: AW70V6mk2 Dimensions
