KNX-RIO-1 Russound KNX to RIO Gateway

Category: Expansion Devices

The Russound KNX-RIO-1 Gateway is a device that allows KNX panels and keypads to operate Russound controller amplifiers that support the RIO protocol. The KNX-RIO-1 gateway supports control for up to 16 zones.

The KNX-RIO-1 can be configured in the standard KNX ETS Software program to perform a number of control functions, including basic Zone control and basic Source control. The KNX-RIO-1 also supported metadata feedback for those sources that support metadata (i.e. Russound Streamers) and KNX keypads and panels that can display the metadata.

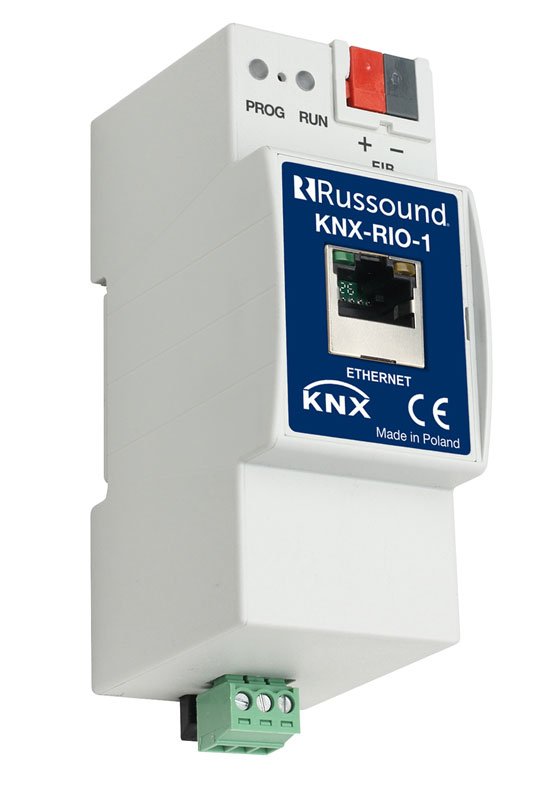

The Russound KNX-RIO-1 has standard KNX Bus connections and two LED lights both Red and Green to indicate connection status and programming download status. There is an Ethernet connection for the KNX-RIO-1 to be connected to the local LAN and standard Ethernet connection status lights for that connection. The KNX-RIO-1 is installed on 35mm DIN Rails and is powered by the power supply for the DIN Rail.

  • Allows KNX keypads and panels to operate Russound controllers via RIO protocol
  • Connection to the local LAN for IP control
  • Supports up to 16 zones and 8 sources
  • Supports up to 32 System Favorites
  • Supports Source Metadata - Source Name, Channel, Playlist, Artist and Song Title
  • Standard KNX bus connection
  • LED indicators for programming status and connection status
  • Standard connection to DIN rail for power and ease of installation
  • Shipping Dimensions: 4.8" (W) x 3.0" (H) x 3.0" (D), (12.1 x 7.6 x 7.6 cm)
  • Shipping Weight: 0.0 lbs (0.0 kg)
  • Casting Color: Cream
  • Construction Material: ABS
  • DIN Modules: 2 - EN 60715
  • KNX Bus Connection: Standard KNX Bus terminal (grey and red)
  • Max Current: KNX Bus: Max. 85 mA Ext. PS: 10 mA
  • Operating Temperature Range: -5C to 45C
  • Power Consumption: Max. 80 mA using only KNX Bus terminal, Max. 10 mA connecting 12 � 24 VDC to the auxiliary screw terminal
  • Power Supply: Obtained from the KNX Bus or separate external 12-24 PS
  • Protection Degree: IP 20, EN 60529
  • Standards: In accordance with low voltage directives, EMC and RoHS
  • Storage Temperature: -25C to 55C
  • Transport Temperature: -25C to 70C



ce stamp

KNX-RIO-1 Product Manual: KNX-RIO-1 Product Manual.pdf

KNX-RIO-1 Product Brief: KNX-RIO-1 Product Brief

KNX-RIO-1 Image: KNX-RIO-1.jpg
