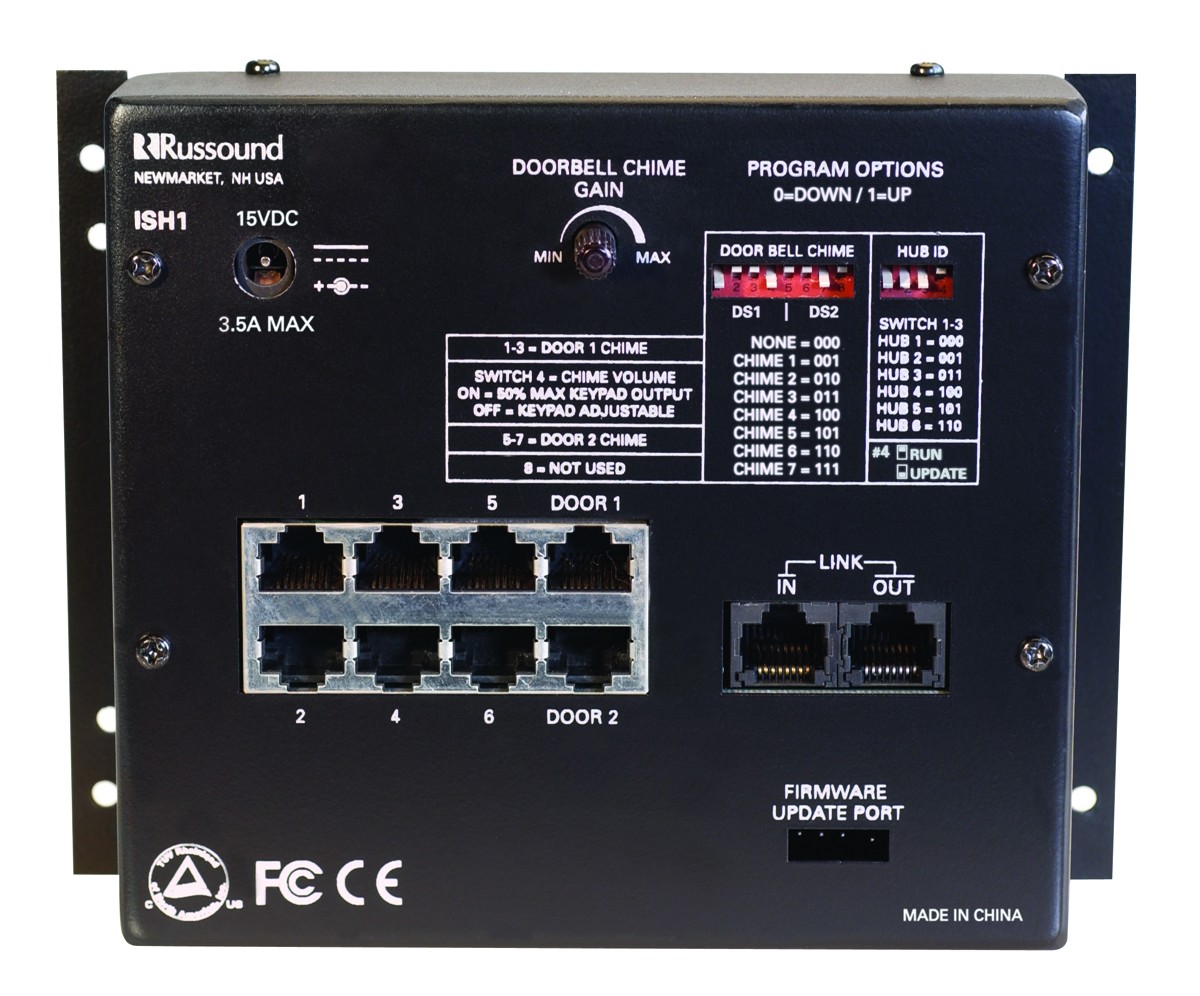

ISH1, ComPoint Hub

The heart of the ComPoint system, the ISH1 Hub connects the keypads and door stations. It provides your choice of seven different doorbell chimes, assignable to the door stations by your installer.

Up to six hubs can link together to accommodate up to 36 zones.

  • System expands to up to 36 zones for larger homes or room to grow
  • Choice of seven doorbell chimes, with adjustable chime volume level
  • Organizes door station, intercom and paging functions according to priority level
  • Reliably manages communications throughout the home
  • Designed to easily install in a structured wiring panel and uses CAT-5 connectivity
  • Shipping Dimensions: 8.4" (W) x 2.8" (H) x 7.0" (D), (21.4 x 7.0 x 17.8 cm)
  • Shipping Weight: 2.0 lbs (0.9 kg)
  • Door Station Connectors: (2) 8-pole RJ-45
  • Doorbell Options: 7 chime patterns plus no chime
  • Keypad Outputs: (6) 8-pole RJ-45
  • Link Connectors: (2) 8-pole RJ-45
  • Mounting Method: Surface or structured wiring panel
  • Power Requirement(s): 15 VDC 3.5 A (Use model ISPS power supply, not included)
  • Switches: 4-switch DIP for hub ID settings, 8-switch DIP for
    2 doorbell settings, potentiometer for doorbell volume
  • Update Connector: 4-pole port for Programming Cable,
    Russound part #2500-521065


ce stamp
