Russound’s CA4 Multizone Controller Kit offers control of a four-zone, four-source multiroom audio system at an entry-level price. Designed for simplicity, the CA4 provides a slim profile chassis and elegant wire management solution for an attractive installation in either an entertainment center or equipment rack.

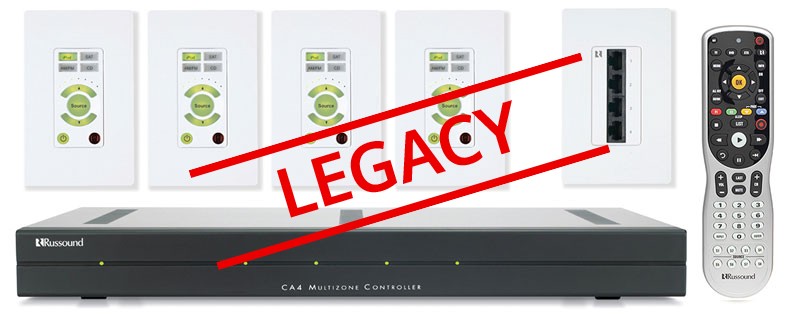

CA4-KT1 Multi-room Controller System Kit with CA4-KP
Category: Audio Systems - Legacy
The CA4 Kit is designed for easy installation and use, it features a rack-mountable 1U chassis, Class D digital amplifiers, an RS-232 port for connection to home automation and control equipment, a 12 VDC mute trigger input, and a 12 VDC trigger output. The CA4 also features source grouping, all on, all off, and “party mode.” Systems are scalable to support up to two CA4 controllers linked to make an eight-zone system with four sources. The CA4-RC learning system remote is designed exclusively for the CA4 and provides complete source control through IR pass through.
To speed up wiring and reduce clutter, the CA4 uses an innovative wall port to connect the controller to the network of wiring that runs throughout the home. Four CAT-5 cables (included with kit) connect the CA4 to the wall port. From the wallport, CAT-5 and speaker wiring is run to each zone. This design allows a home to be pre-wired and tested before the CA4 and source equipment is installed.
For system control, the all-new CA4-KP keypad lets you select between four sources and adjust bass, treble and loudness. The keypad is also used to set source grouping, all on, all off, and party mode. The CA4-KP features green backlighting, and includes an IR receiver and IR confirmation through an LED status indicator.
Kit Contains:
1 CA4 Controller
4 CA4-KP Keypads – White (Decora wallplates not included)
1 CA4-WP Wallport – White (Decora wallplate not included)
1 USRC Universal System Remote Control
4 Single IR Emitters
4 CAT-5 with 4 RJ45 connectors
4 Sets Source Labels
1 Pair of Rack Ears
1 Power Cord
1 Instruction Manual
- Four-source/four-zone controller, 30 watts per zone, CAT-5 connectivity to system wall port for flexibility and convenience
- Adjustable bass, treble, loudness, All On with Party Mode and All Off for total control from keypads
- Allows for connection to home integration and automation systems using RS232 port
- Distinctive streamlined controller and keypads, available in six Decora® colors (sold separately), fits any interior
CA4 Controller:
- Shipping Dimensions 20.3" (W) x 7.5" (H) x 11.4" (D) / (51.4 x 19.1 x 29.0 cm)
- Shipping Weight 11.4 lbs (5.2 kg)
- Audio Output(s) 4 speaker level (8 ohms)
- Audio Source Inputs 4
- Common IR Port 1
- Communication Ports RS232 port
- Frequency Response 20 Hz - 20 kHz
- Input Impedance 50 kohms
- Line Audio Outputs 2 (Fixed and Variable) (Zone 4 only)
- Max Source Audio Input 2.3 Vms
- Power Supply VAC 100V to 240V @50-60Hz 110W (Auto Select)
- Routed IR Ports 4
- Trigger Input(s) 12VDC
- Trigger Output(s) 12VDC 100 mA Max
- Wall Port Ports 4
- Watts per channel 15
CA4-KP Keypad:
- Shipping Dimensions 2.7" (W) x 4.5" (H) x 2.3" (D) / (6.8 x 11.4 x 5.7 cm)
- Shipping Weight 0.2 lbs (0.1 kg)
- Keypad Cables CAT-5 - RJ-45 termination
- Keypad Ports 1
- Max Cable Length Wall Port to Keypad - 240' (73.2m)
CA4-WP Wall Port:
- Shipping Dimensions 2.7" (W) x 4.4" (H) x 2.3" (D) / (6.8 x 11.2 x 5.7 cm)
- Shipping Weight 0.3 lbs (0.1 kg)
- Keypad Cables CAT-5 - RJ-45 termination
- Keypad Ports 4
- Max Cable Length Wall Port to Controller: 6' (2m)
- Wall Port to Keypad: 240' (73.2m)
- Wall Port to Speaker: 240' (73.2m)
- Speaker Connection(s) 4
- Speaker Wire Size 14-18 gauge - screw termination
CA4 Controller Product Manual: CA4 Product Manual.pdf
CA4-KT1 Product Brief: Product_Brief.pdf
CA4-KP Product Manual: CA4-KP Product Manual.pdf
CA4-WP Product Manual: CA4-WP_Product Manual.pdf
