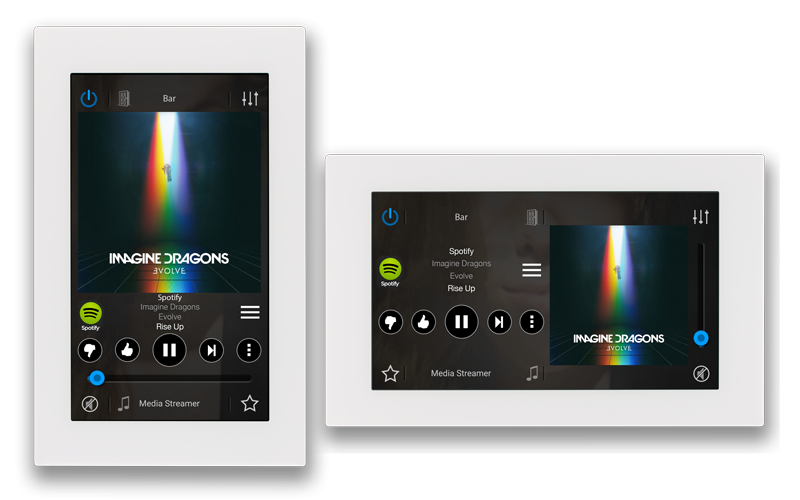

XTS Wall-Mounted Color Touchscreen

The in-wall App from Russound! The XTS Touchscreen is a stylish in-wall touchscreen that runs an embedded version of the popular MyRussound™ App.

By placing the powerful MyRussound app in a permanent location on a wall, the XTS gives you full and easy control of your Russound system, eliminating the need to use your phone or tablet to simply change the volume or change the music.

  • Elegant, low-profile design
  • 4.7" (11.9 cm) high resolution QHD display
  • Powerful Cortex-A9 dual core processor
  • Adjustable display brightness and screen timeout settings
  • Installs in either portrait or landscape orientation
  • Supports the MCA-66, MCA-88, MCA-88X, XSource, XZone4, XZone70V
  • Controls any zone within a Russound system
  • Installs Easily in a 1-Gang Box or Low Profile P-Ring
  • Extends from wall only 0.57" (14.5 mm) when installed
  • Flush-Mount mounting option available via Wall-Smart
  • Shipping Dimensions: 9.9" (W) x 5.8" (H) x 1.2" (D) / (25.1 x 14.6 x 3.0 cm)
  • Product Dimensions: 3.2" (W) x 5.2" (H) x 1.3" (D) / (8.1 x 13.2 x 3.4 cm)
  • Shipping Weight: 1.1 lbs (0.5 kg)
  • Connection: Gigabit Ethernet, with 802.3af POE
  • Display: 4.7" (11.9 cm) High Resolution QHD Display
  • Power Requirement(s): PoE Power, or 12VDC @ 2A
  • Processor: Cortex A9



ce stamp

Product Manual: XTS Product Manual

Product Brief: XTS Product Brief

XTS Front Image: XTS_Portrait.jpg

XTS Angle Image: XTS_Landscape.jpg

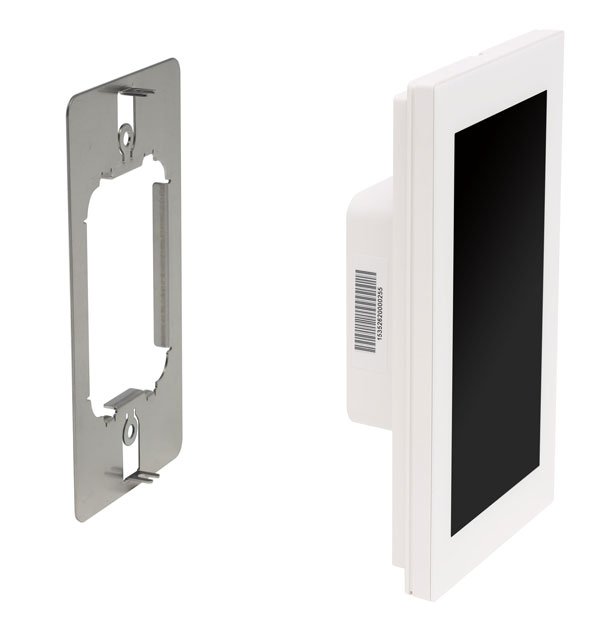

XTS With Bracket: XTS_wBracket.jpg
