  • D890 Eight-Channel Digital Amplifier

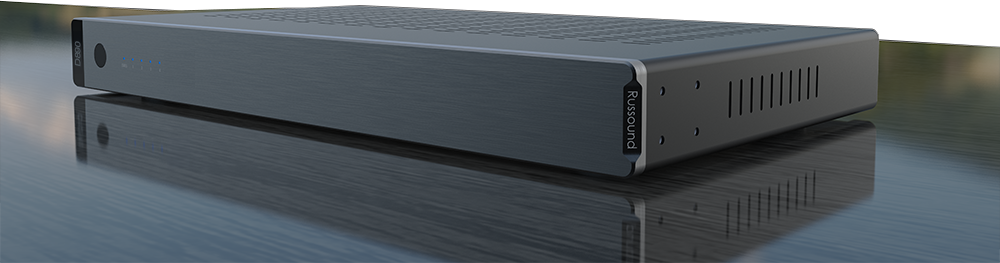

D890 Front ISO on Table
D890 Front ISO on Table

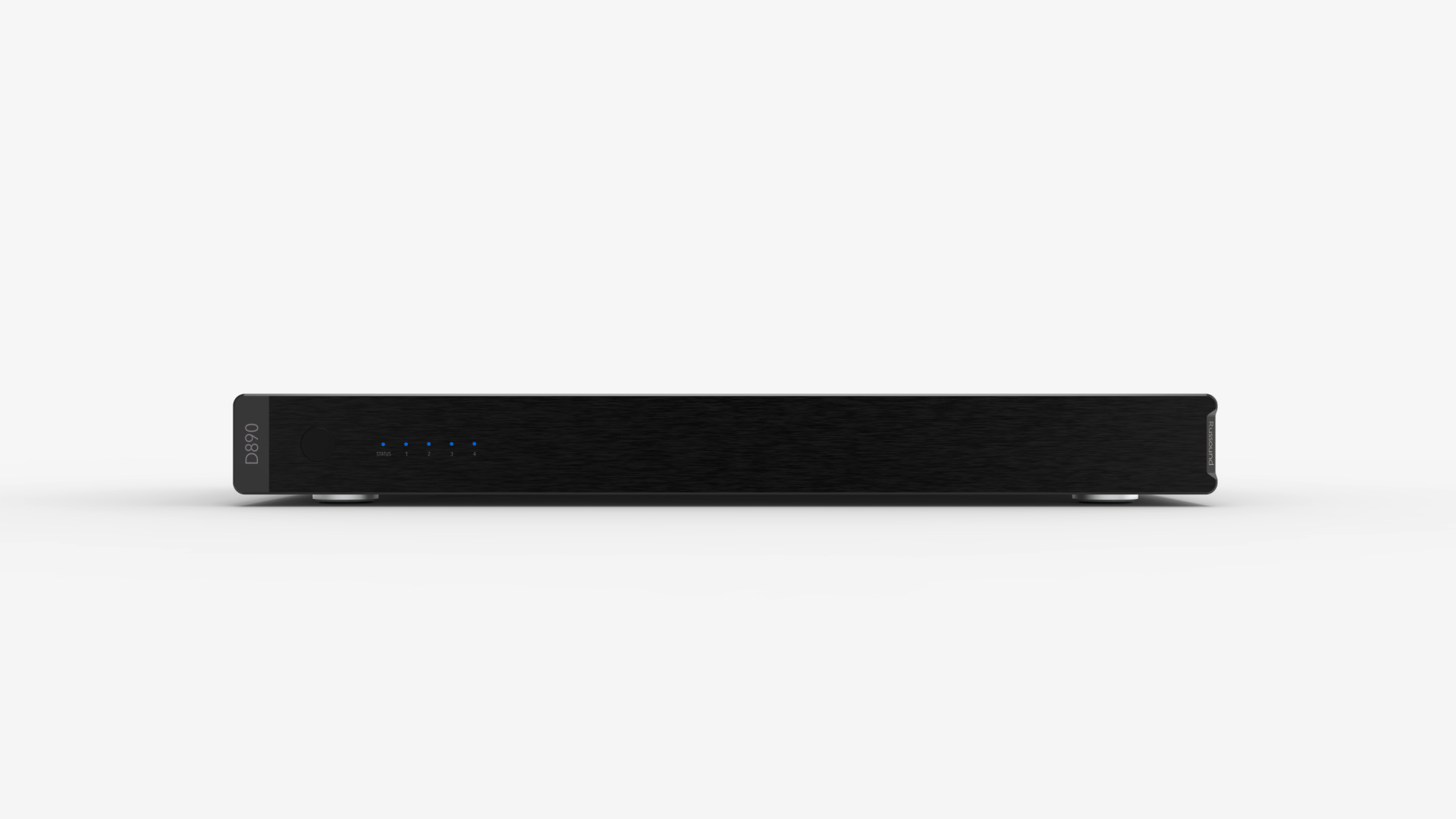

D890 Front

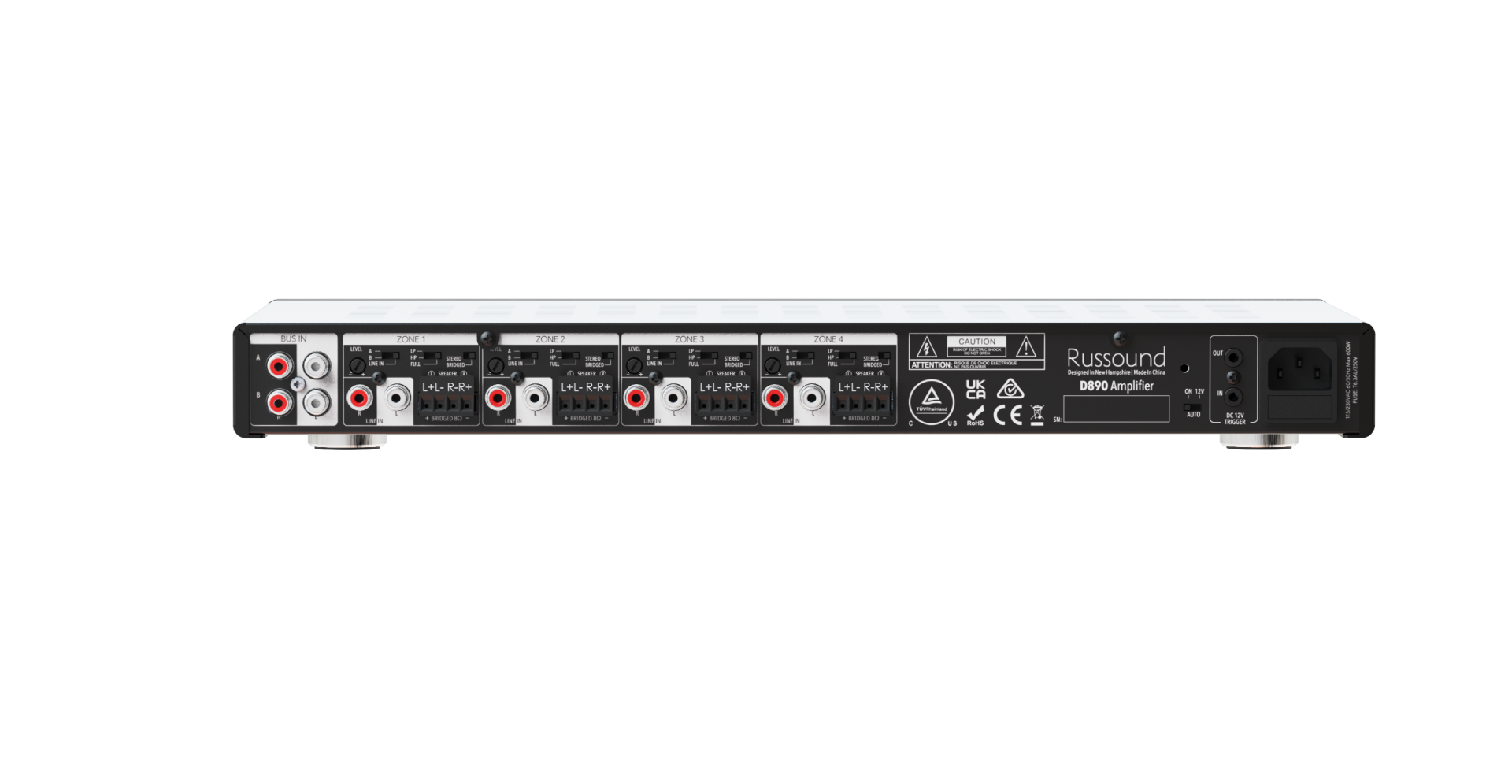

D890 Rear

Featured Products D890 Eight-Channel Digital Amplifier

Category: Multichannel Amplifiers
SKU: D890

Russound’s D-Series of amplifiers are synonymous with premium performance, reliability, and durability, forming the backbone of professional audio installations around the world. The newest generation builds upon the legacy of these prestigious products and is offered in three compelling models: D890 - 8 Channels (4 Zones) of Audio,  D1290 - 12 Channels (6 Zones) of Audio, and D1675 - 16 Channels (8 Zones) of Audio.

Each of these models is designed to expand an audio system into more rooms or areas or to add increased audio output for larger rooms or outdoor areas where a higher output volume is required.

While these amplifiers pack a punch with up to 90 watts per channel on the D890 and D1290 models and a massive 75 watts per channel in up to 16 channels in the D1675, these models utilize an advanced digital design which results in smaller chassis sizes than in any previous generation of Russound amplifiers. The 8 and 12 channel models are only a single rack-unit in height and the 16 channel takes up only 2 rack-units.

Being able to reduce the size of the amplifiers was a key goal of the new design, but Russound didn’t want to reduce any features and even wanted to add more than we’ve ever offered in the past.

The new D-Series does just that by adding a new, easily configurable option to custom tailor the audio output for the desired application, from powering traditional speakers, to driving passive subwoofers added to any area of the home, indoors and out.

These new amplifiers give installers the flexibility and reliability they need to satisfy the needs of their clientele, all while keeping an acceptable project budget. And they deliver the high-quality audio performance that their customers expect.



 Limited Warranty 2 year 01      DoubleYourWarranty whiteasterisk

*See Russound.com/warranty-registration for information



  • Features
  • Specifications
  • Documents
  • Product Images
  • 8-Channels @ 90W
  • Class D Amplification
  • Thermal Fan Cooling
  • High Dynamic Range
  • Slim 1U Chasis
  • Source Flexibility
  • Easy to Configure Audio Filter Options: Full Range Sound, Low Pass Filter & High Pass Filter
  • Control Flexibility: Always On, Signal Sensing & 12V Trigger
  • Rack mountable
  • 2 Year Warranty
  • Shipping Dimensions: 20.2"(W) x 4.9" (H) x 14.3" (D) (51.33 x 12.5 x 36.3 cm)
  • Shipping Weight: 11.8lbs (5.35kg).
  • Amplifier Channels: 8 channels 4 independent zones
  • Bridge: Yes
  • Frequency Response: 20Hz to 20kHz +/-3dB at 1W output into 4 or 8 Ohms
  • Fuse Rating: 6.3A, 250V FA
  • Input Impedance: >22k ohms Line Input
  • Input Sensitivity:
    620 mV for 90W @ 1kHz 4 Ohm One Zone
    690 mV for 45W @ 1kHz 8 Ohm One Zone
  • Power Output:
    90W /Channel, 1kHz One Zone Driven - 4 Ohm
    45W /Channel, 1kHz, One Zone Driven - 8 Ohm
    180W, 1kHz, One Zone Driven - 8 Ohm Bridged
  • Power Requirement(s):
    North American Model: 115-120VAC, 60Hz (600W Max)
    International Model (D890i):220-240VAC, 50Hz (600W Max)
  • Signal to Noise Ratio: >90dB A-weighted
  • Speaker Connection(s): Detachable Screw-down, up to 12AWG
  • Trigger Input(s): 12V, Global
  • Line Input: Selectable: Bus A, Bus B, Zone
  • Warranty: Two Years



ce etl stamp 3137900

Product Manual: D-Series Manual

Product Guide: Russound D890 Product Guide

D890 Front: D890 Front

D890 Rear: D890 Rear

D890 Rear Angle: D890 Rear Angle

D890 ISO On Table: D890 ISO On Table
