Speakers

  • Home
  • Products
  • Speakers
  • In-Ceiling / In-Wall Speakers
  • IC-630 6.5" Premium Performance Loudspeaker
IC-630-Front-Final-1000px
IC-630-Front-Final-1000px
IC-630_Back_NewLabel

Featured Products IC-630 6.5" Premium Performance Loudspeaker

Category: Speakers

Left, Right, Center Stage

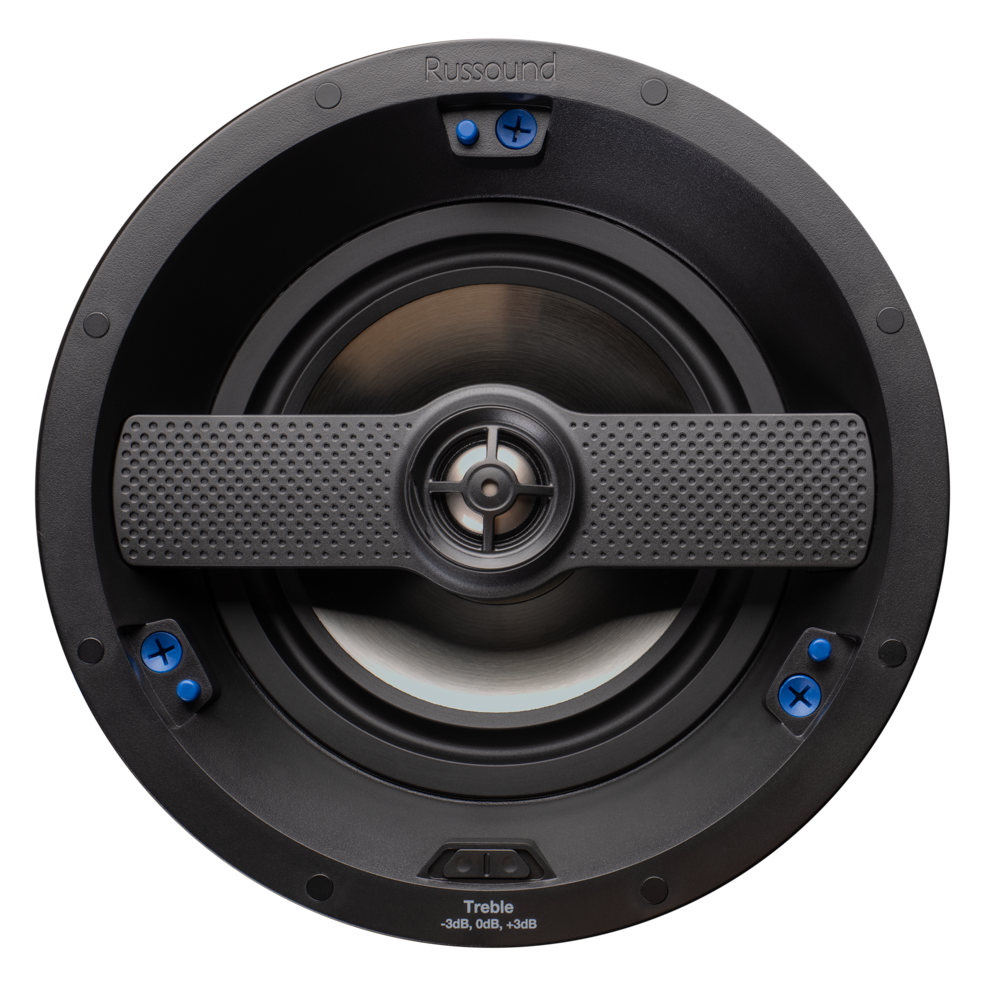

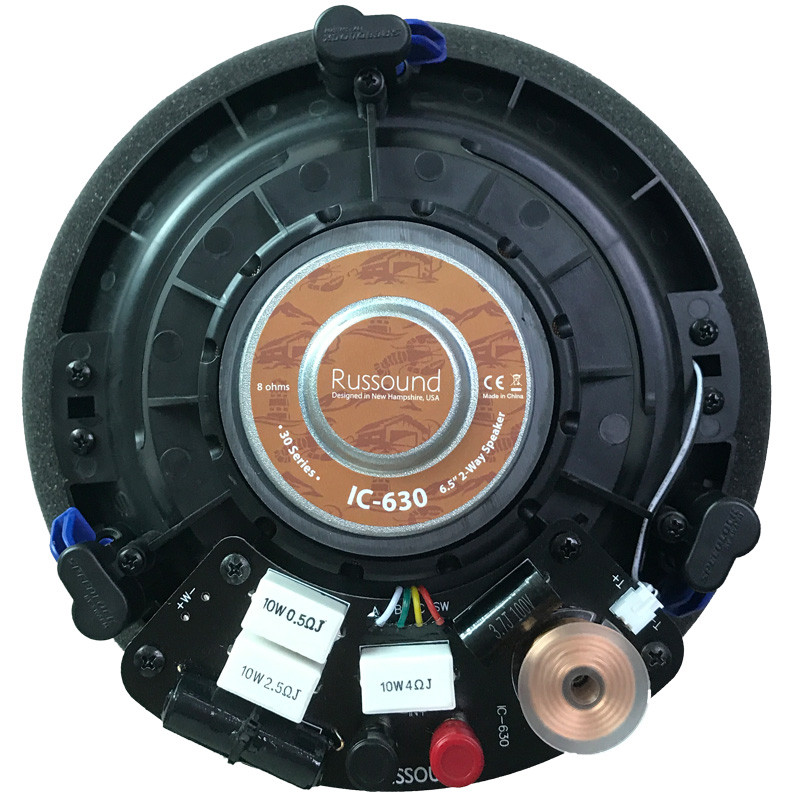

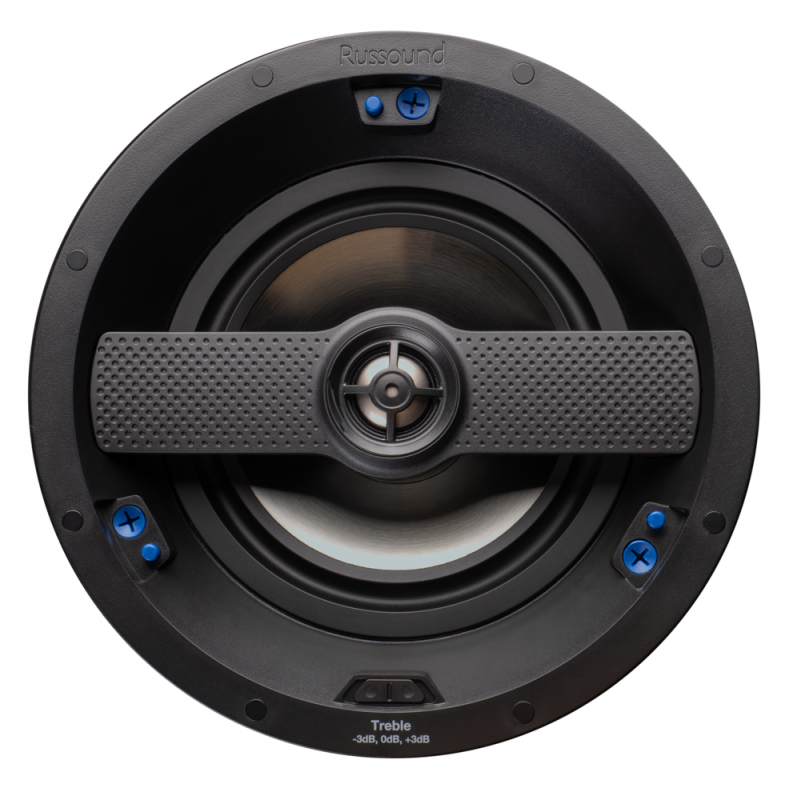

The IC-630 is Russound's flagship in-ceiling speaker.designed for intelligent highs and deep rich lows. Using advanced marterials from the 1" pivoting titanium tweeter to the 6.5" injection-molded polypropylene cone with vapor-deposited titanium, the IC-630's performance will blow you away and will continue to impress you during years of enjoyment.  It includes a +/- 3dB tweeter adjustment switch to allow you to adjust for the room's acousitc characteristics.  In bright, reflective rooms with lots of hard surfaces, set the switch to -3dB to tone down the highs a bit.  In a room filled with large, absorptive items like bulky furniture, thick carpet and curtains, set the switch to +3dB to compensate and reinforce the high frequencies as needed.  The patented SwiftLock® by Swarm technology allows for quick and easy tool-less installation with the simple press of a button at each of the three mounting dogs.

 Limited Warranty lifetime 01



IC 630 Callouts

SwiftLock How To

  • Features
  • Specifications
  • Documents
  • Product Images
  • Enhanced frequency response and acoustic performance for the critical listening areas of the home
  • Excellent for both music and TV/movie/home theater use
  • Swiftlock® tool-less quick and easy installation
  • Paintable edgeless grilles blend seamlessly into any décor
  • Powerful neodymium grille magnets for easy and secure attachment
  • Type: Two-way in-ceiling
  • Shipping Dimensions (Pair): 11.75" x 10.75" x 12" (29.8 cm x 27.3 cm x 30.5 cm)
  • Shipping Weight (Pair): 8 lbs (3.6 kg)
  • Cutout Dimensions: 8.25" (20.96 cm) diameter*
  • Frequency Response: 45 Hz - 25 kHz
  • Impedance: 8 ohms
  • Magnet Structure: 11 oz (0.312 kg)
  • Mounting Depth: 4.22" (10.7 cm)
  • Overall Dimensions: 9.37" (23.8 cm) diameter
  • Recommended Power: 5 - 110 watts
  • Sensitivity: 90 dB @ 1w/1m
  • Tweeter: 1” / (25 mm) Pivoting Titanium
  • Woofer: 6.5” / (16.51 cm) IM Polypropylene cone with vapor deposited Titanium



*Russound recommends cutting an 8.375” (21.27 cm) opening for ease of installation. A cut-out template is included in the packaging



ce stamp



Product Manual: IC-Series Speaker Manual

Product Brief: IC-Series Product Brief

Comparison Sheet: IC-Series Comparison Sheet



IC-630: IC-630 Image





Related Products

Featured Products
IC-620-Front-Final-1000px

IC-620 6.5" Enhanced Performance Loudspeaker

Tweeter: 1” / (25 mm) Pivoting Silk Woofer: 6.5” / (16.51 cm) Injection-Molded  Polypropylene cone Frequency Response: 47 Hz - 20 kHz

More...
Featured Products
IC-620-Front-Final-1000px

IC-820 8" Enhanced Performance Loudspeaker

Tweeter: 1” / (25 mm) Pivoting Silk Woofer: 8” (20.32 cm) Injection-Molded Polypropylene Cone Frequency Response: 42 Hz - 20 kHz

More...
Featured Products
IC-610-Front-Final-1000px

IC-610 6.5" All Purpose Performance Loudspeaker

Tweeter: 0.75" / (19 mm) Pivoting Silk Woofer: 6.5” / (16.51 cm) Polypropylene cone Frequency Response: 50 Hz - 20 kHz

More...
Featured Products
IC-610T-Front-Final-1000px

IC-610T 6.5" Single Point Stereo Loudspeaker

Tweeter: 0.75" / (19 mm) Pivoting Silk Woofer: 6.5” / (16.51 cm) Polypropylene cone Frequency Response: 40 Hz - 20 kHz

More...
Featured Products
IW-620-Front

IW-620 6.5" Enhanced Performance In-Wall Loudspeaker

Tweeter: 1” / (25 mm) Pivoting Silk Woofer: 6.5” / (16.51 cm) Injection-Molded Polypropylene cone Frequency Response: 47 Hz - 20 kHz

More...
sb-c67-in-ceiling-rough-in-speaker-brackets-for-6-5-speakers

SB-C67 In-Ceiling Rough-In Speaker Brackets for 6.5" Speakers

Speaker new-construction brackets are used in the rough-in phase of speaker installation. Sold in pairs.

More...
square-grilles-flat-web

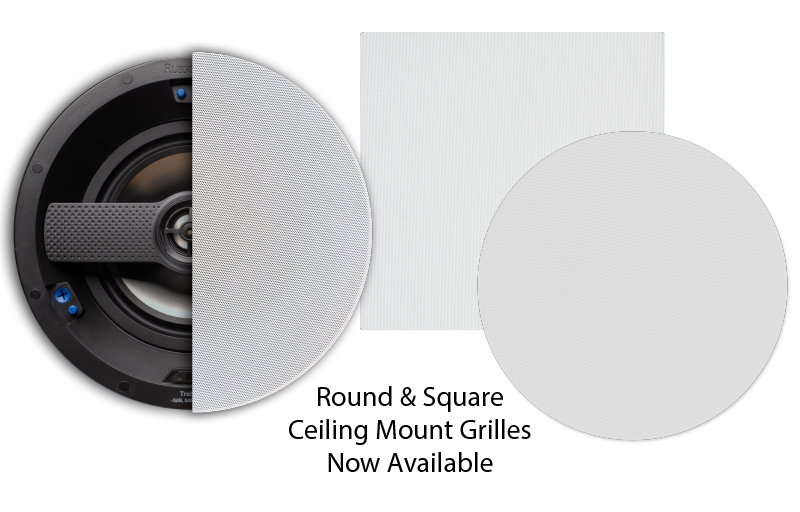

ICG-6S 6.5" Square Grille
