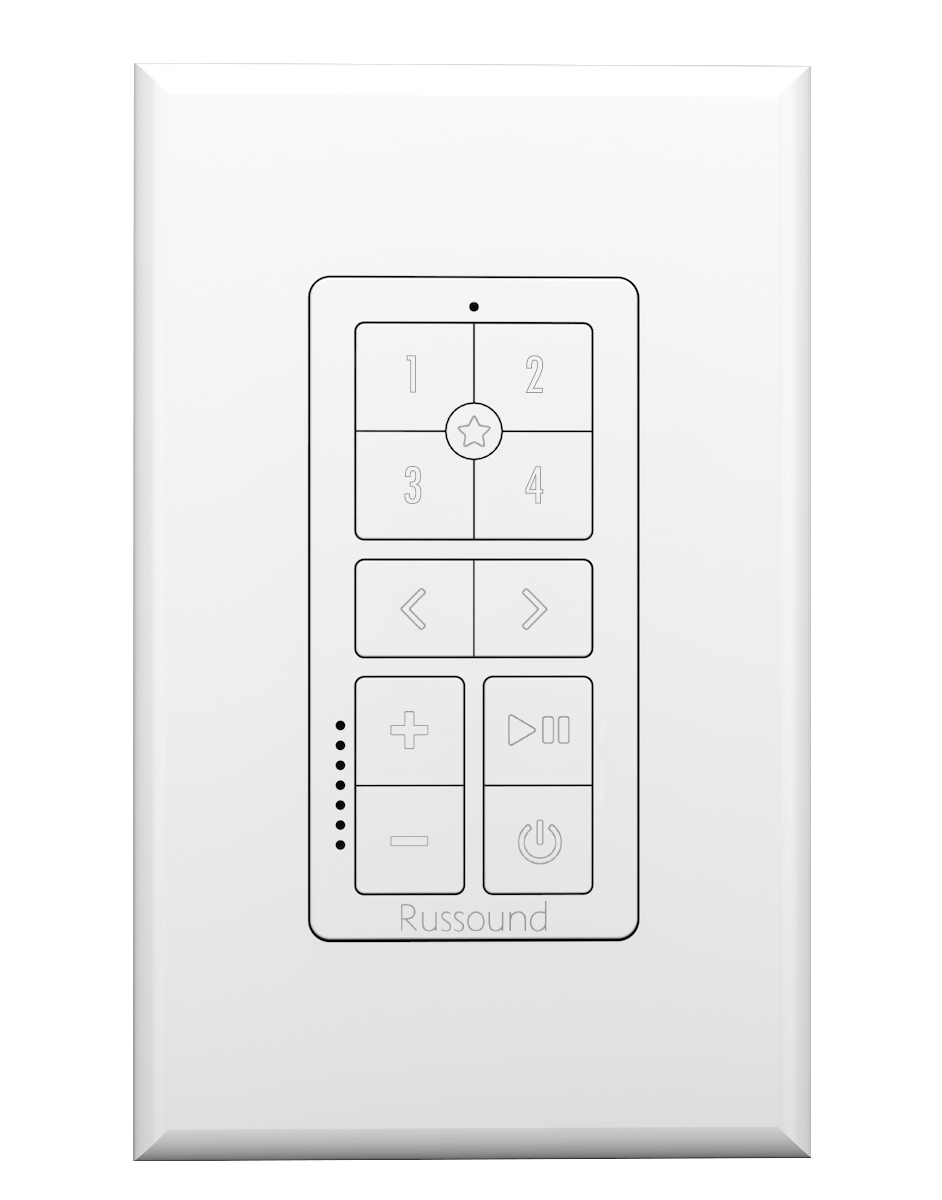

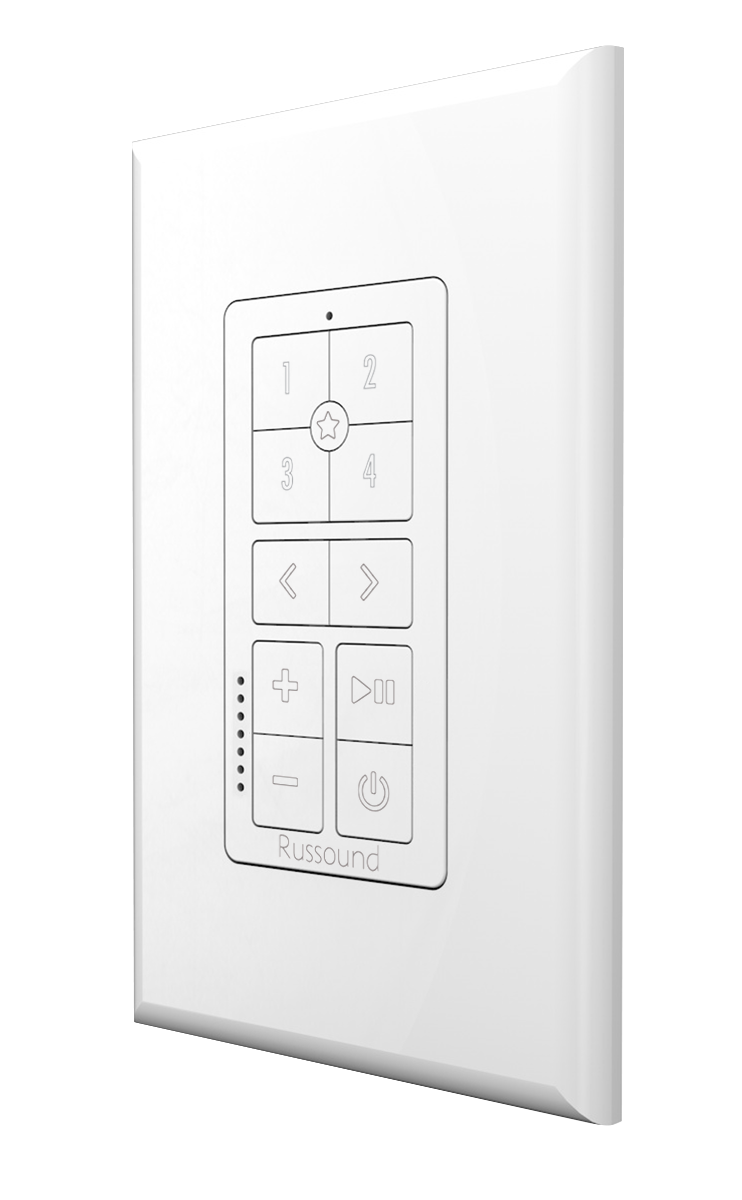

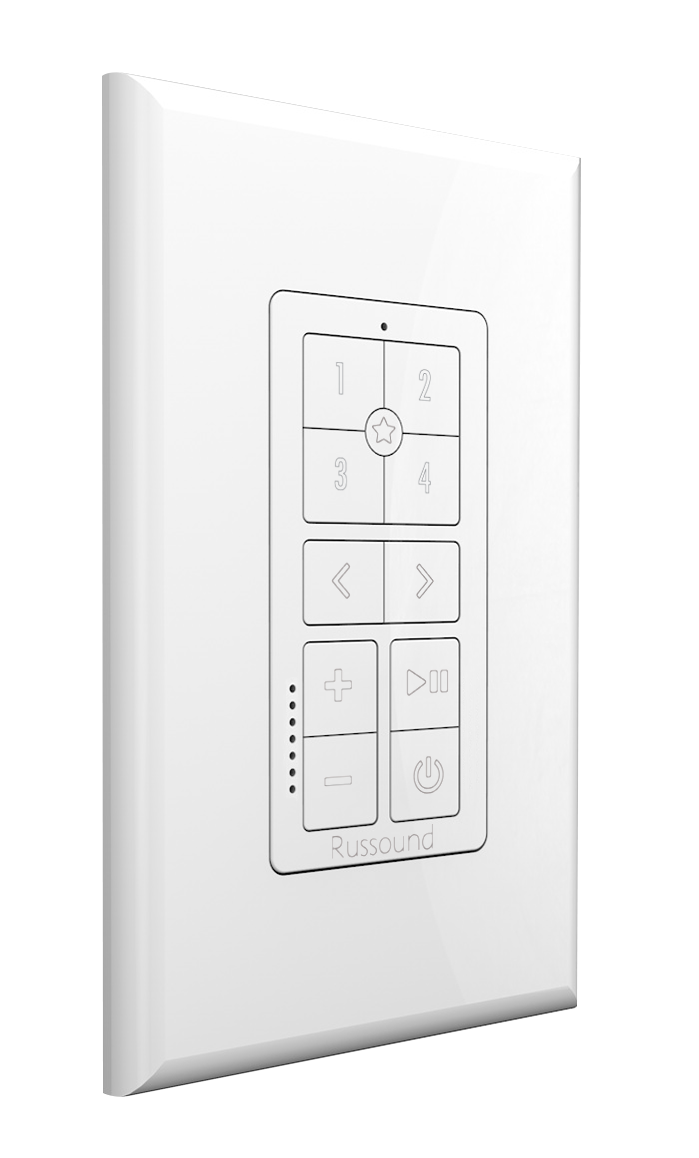

IPK-1 Single-Gang IP Keypad

The IPK-1 is designed to provide easy access and convenient control to a room or zone using any of the following Russound audio systems: MCA-66, MCA-88, MBX-PRE, or MBX-AMP. While the Russound audio systems can be controlled by app, many users prefer having a dedicated keypad that is always available without having to pull out their phone, navigate to the Russound app, and then navigate to the room they want to control. The IPK-1 is designed to intuitively control your system without interfering with your lifestyle. For example, the volume LED’s only illuminate when the volume is adjusted. The status LED is designed to turn off when your audio system is not in use so that the LED will never light up a dark bedroom at night.



Russound Icons Building   Two-way Feedback showing system status and volume level
Russound Icons Microphone   Save and recall up to four room favorites for quick access to your favorite music
Russound Icons Music   Single Wire Connection for both power and data (802.3af PoE)
   Russound Icons Building     Two color options included: White and Black

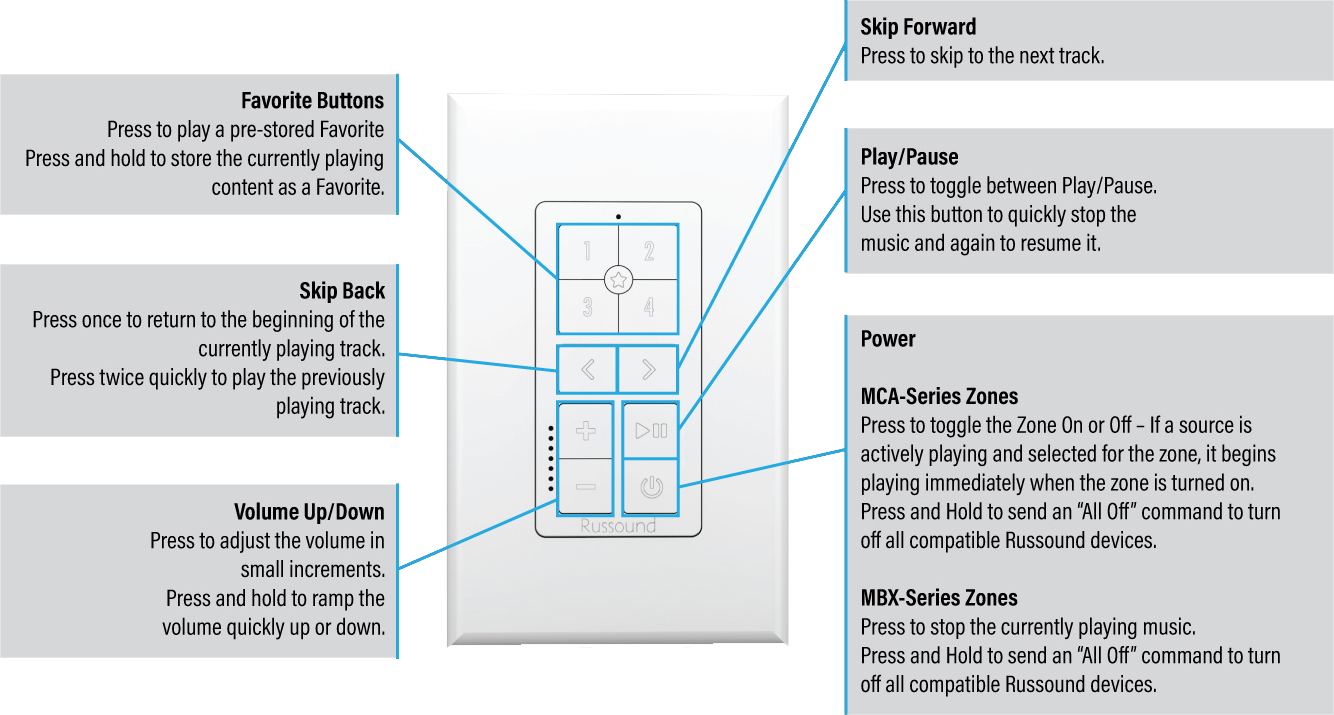

Button Features

IPK 1 Callout Overview FINAL transparent

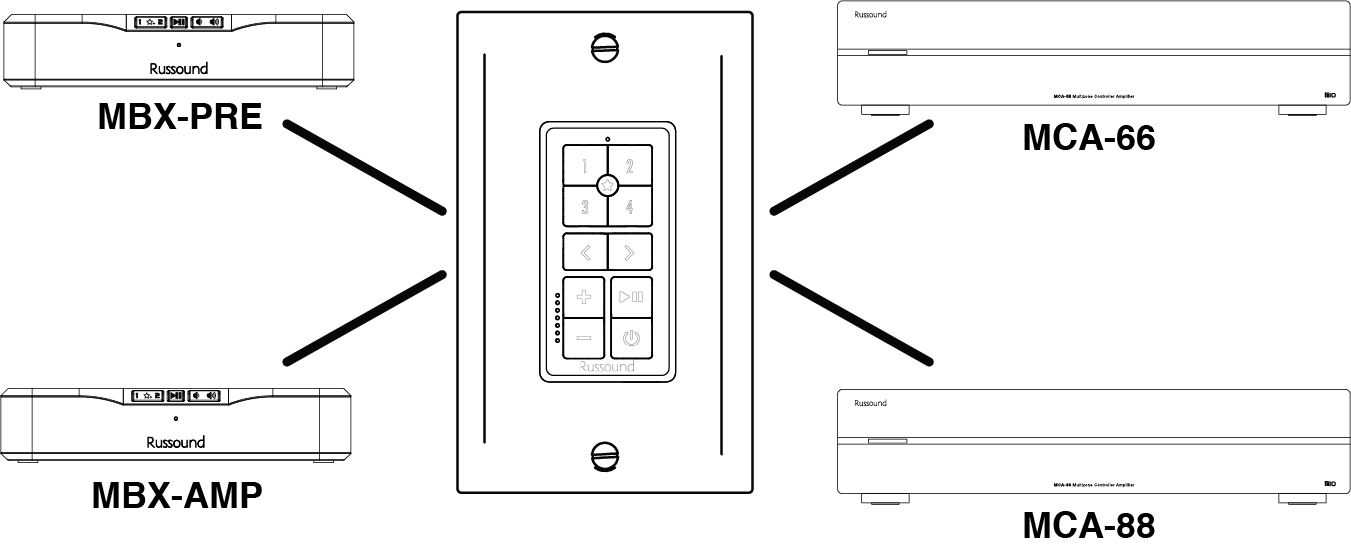

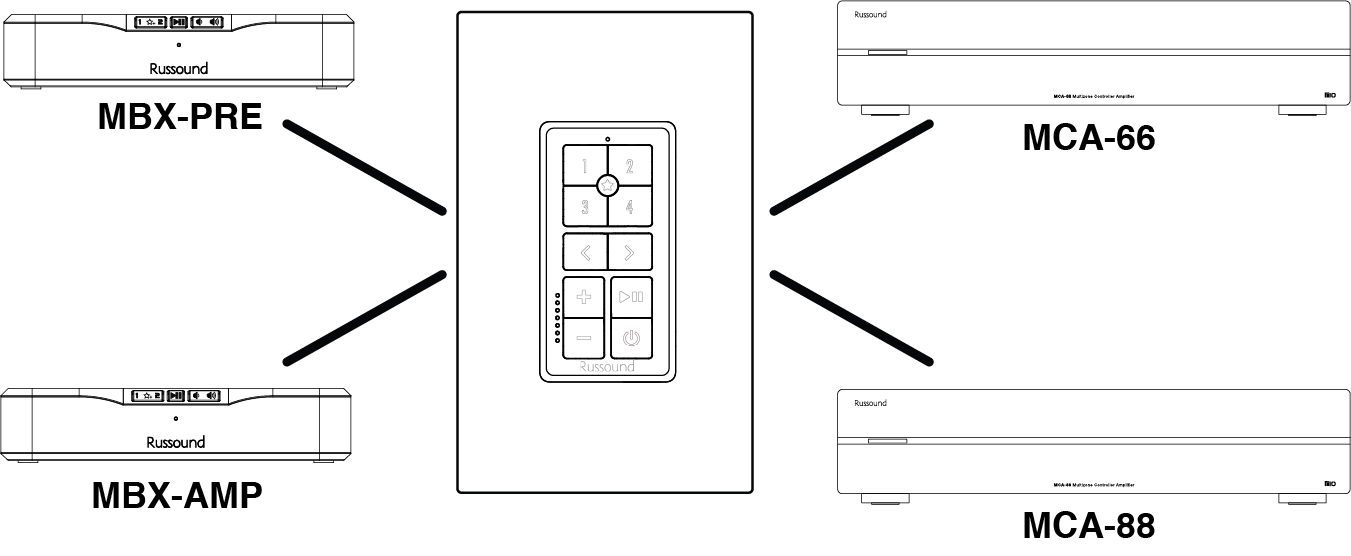

 Compatibility

The IPK-1 is designed to work with Russound's IP-based audio systems, including the MBX-Series Wi-Fi Streamers and any zone of an MCA-Series Controller Amplifier.



 IPK 1 compatible models3x



Limited Warranty 1 year 01

  • Simple Configuration, No Programming Needed

  • Controls a Russound Audio Zone

  • Provides Easy to Use Interface for Audio Control and Favorites

  • PoE Powered: 802.3af (Power supply not included)

  • Works with: MCA-66, MCA-88, MBX-AMP, MBX-PRE

  • Includes Black and White Decora Inserts. Decora wall-plate not included and must be purchased separately

  • Requires a Wired Ethernet Connection

  • Mounting Depth Behind Faceplate: 1-1/32”(26.2 mm)

  • Shipping Dimensions: 6.66" (W) x 2.95" (H) x 2.48" (D) / (16.9 x 7.5 x 6.3cm)

  • Product Dimensions: 1.75" (W) x 4.19" (H) x 1.31" (D) / (4.4 x 10.6 x 3.3cm)

  • Shipping Weight: 1 lb (0.45 kg)

  • Connection: Requires a Wired Ethernet Connection

  • Mounting Depth Behind Faceplate: 1-1/32”(26.2 mm)

  • Power Requirement(s): PoE Powered: 802.3af (Power supply not included)



ce stamp



Product Manual: IPK-1 Product Manual

Product Brief: IPK-1 Product Brief
