MDK-C6 Multiline Display Keypad

The MDK-C6 Multiline Display Keypad is a wall-mounted, standard fit, double-gang keypad for all MCA-Series controllers.



Limited Warranty 2 year 01



The MDK-C6 Multiline Display Keypad is a wall-mounted, standard fit, double-gang keypad for MCA-Series controllers.

The keypad's gray scale LCD screen displays real-time information including playlist, channel, artist, song title, genre and more when used with compatible Russound sources. Responsive hard buttons offer access to virtually every system feature and source control function. The buttons and screen brightness are adjustable and can be dimmed at the owner's discretion.



  • High-resolution multiline display
  • Menu-driven interface
  • IR receiver with auxiliary input (plasma proof option)
  • Fits in a standard 2-gang box
  • Flush-Mount mounting option available via Wall-Smart
  • Available in five colors



  • Shipping Dimensions: 7.8" (W) x 3.3" (H) x 7.3" (D), (19.7 x 8.3 x 18.4 cm)
  • Shipping Weight: 1.0 lbs (0.5 kg)
  • CAT-5e Connection: RJ-45 (T568A standard)
  • Display: 70 mm (W) x 35 mm (H), High resolution LCD
  • Power Requirement(s): 275mA @ 12VDC MAX
  • Wall Surface Dimensions: 4.5" (W) x 4.5" (H), (11.43 cm x 11.43 cm)



 ce stamp

MDK-C6 Product Manual: MDK-C6 Manual.pdf

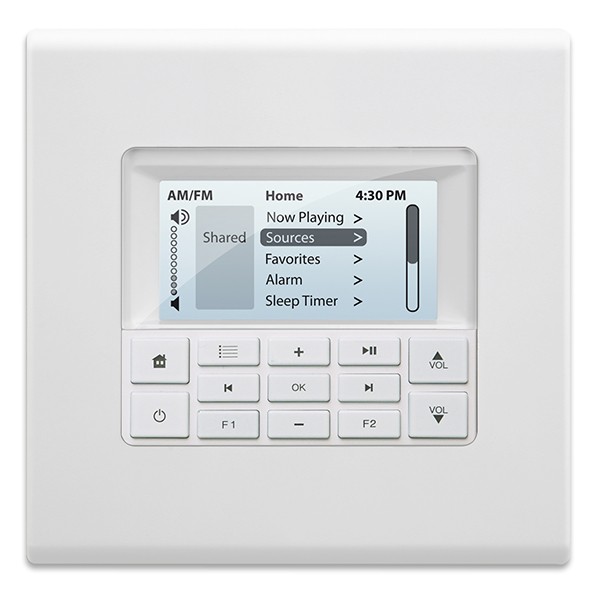

MDK-C6 Front: MDK-C6.jpg

MDK-C6 Side: MDK-C6_Side.jpg

MDK-C6 Rear: MDK-C6 Rear.jpg





  Name SKU Description
MDK-C6_Conv_Light Almond
MDK-C6 Color Conversion Kit - Light Almond 1550-534447

This color conversion kit includes 1 wall plate, 1 keypad bezel and 13 buttons for the MDK-C6 Multiline Display Keypad

MDK-C6_Conv_Almond
MDK-C6 Color Conversion Kit - Almond 1550-534423

This color conversion kit includes 1 wall plate, 1 keypad bezel and 13 buttons for the MDK-C6 Multiline Display Keypad

MDK-C6_Conv_Black
MDK-C6 Color Conversion Kit - Black 1550-534393

This color conversion kit includes 1 wall plate, 1 keypad bezel and 13 buttons for the MDK-C6 Multiline Display Keypad

SWP-S21_White
SWP-S21 - White 7106-526831

Cover Plate for MDK-C6 with space for an additional single-gang component

SWP-S21_Almond
SWP-S21 - Almond 7106-528439

Cover Plate for MDK-C6 with space for an additional single-gang component

SWP-S21_Bone
SWP-S21 - Bone 7106-528477

Cover Plate for MDK-C6 with space for an additional single-gang component

SWP-S21_Black
SWP-S21 - Black 7106-528491

Cover Plate for MDK-C6 with space for an additional single-gang component
