PRO-6 HP 6 Pair, Impedance Matching Speaker Selector

Category: Dual Source

The PRO-6HP is a robust, efficient dual-source speaker selector for up to six pairs of speakers. Designed for demanding applications, this high-quality speaker selector features a low-frequency protection circuit to reduce subsonic signals. This allows higher power operation without amplifier shutdown.

An A/B switch on the front panel allows you to power all your speakers with either of two source amplifiers. The PRO-6HP is designed for use with either 4- or 8-ohm speakers.

The PRO-6HP uses audiophile-grade autoformers for impedance matching to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. A rotary switch on the rear panel sets the appropriate impedance for your amplifier, based on the number of speaker pairs connected.

  • Lets you control speakers in several rooms from a central location
  • Printed room labels included
  • Detachable snap connectors are color coded for easy wire termination
  • Selectable impedance matching accommodates 4- or 8-ohm speakers
  • Low-frequency protection circuit helps to guard your amplifier
  • Audiophile-quality autoformers provide high performance for years
  • Shipping Dimensions: 20.3" (W) x 6.2" (H) x 12.2" (D), (51.4 x 15.6 x 30.9 cm)
  • Shipping Weight: 9.1 lbs (4.2 kg)
  • Connector(s): Detachable 4-pole color-coded snap connectors
  • Impedance Matching Type: Autoformer
  • Low Frequency Protection: Bipolar capacitor circuit, 6 dB high-pass filter, centered at 30 Hz
  • Max Wire Size: 14 AWG (1.9 mm)
  • Power Handling: 100 watts RMS continuous per channel, 300 watts peak per channel
  • Speaker Impedance: 4 ohms


 PRO-6 HP Product Manual: PRO- Series Product Manual.pdf

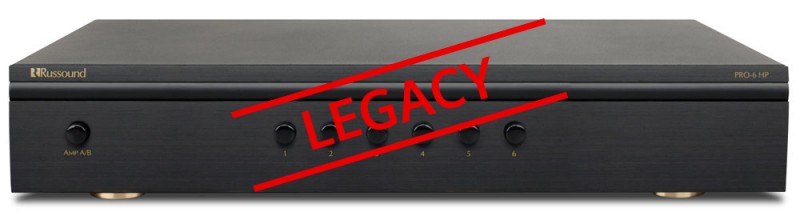

PRO-6 HP Front Image: PRO-6 Front.jpg

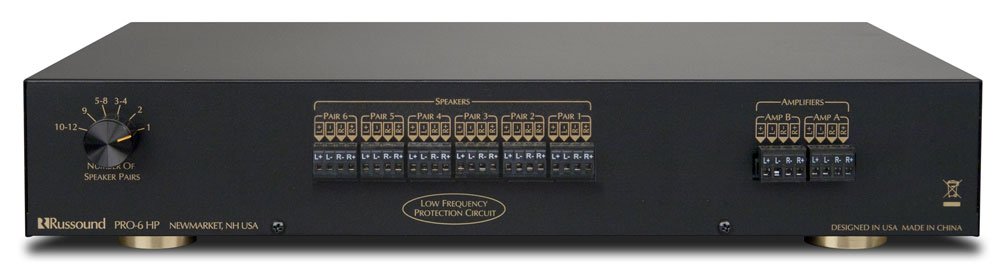

PRO-6 HP Rear Image: PRO-6 Rear.jpg

PRO-6 HP Room Labels: PRO_SDB Room Labels.pdf
