TBL-75 Table Top Volume Control

Category: Indoor Volume Controls

The TBL-75 is a free-standing, 126-watt tabletop volume control with a headphone jack. It connects to the speaker outputs of an amplifier or receiver and can connect to a pair of speakers or just provide volume control for a pair of headphones. Connecting headphones disconnects the speakers in the room for private listening.

An impedance switch on the TBL-75 allows installers to easily match the load of multiple speaker pairs to the amplifier impedance without the need for a speaker selector or other impedance-matching equipment.

All Russound volume controls are made with precision autoformers for high-fidelity sound, excellent frequency response, no heat buildup, and maximum power transfer from the amplifier to the speakers.



  • Freestanding design can be located on a desk, counter, or tabletop
  • Controls a pair of speakers, headphones, or both
  • Selects 11 steps of volume plus off
  • Allows impedance matching for up to 16 speaker pairs per system
  • Precision autoformers assure long life and superior performance
  • Shipping Dimensions: 9.9" (W) x 2.5" (H) x 8.8" (D), (25.2 x 6.4 x 22.2 cm)
  • Shipping Weight: 2.4 lbs (1.1 kg)
  • Audio Output(s): Headphones: 1/4" (6.35 mm) TRS jack
  • Connector(s): Spring terminals
  • Frequency Response: 20 Hz - 20 kHz, +1.0/-0.5 dB at rated power
  • Impedance Matching Type: Autoformer
  • Max Wire Size: 14 AWG (1.9 mm)
  • Power Handling: 126 watts peak, 42 watts RMS continuous per channel
  • Speaker Impedance: Min: 4 ohms
  • Volume Control: 12 steps including Off; total attenuation 43 dB

TBL-75 Product Manual: TBL-75 Product Manual Rev1.pdf

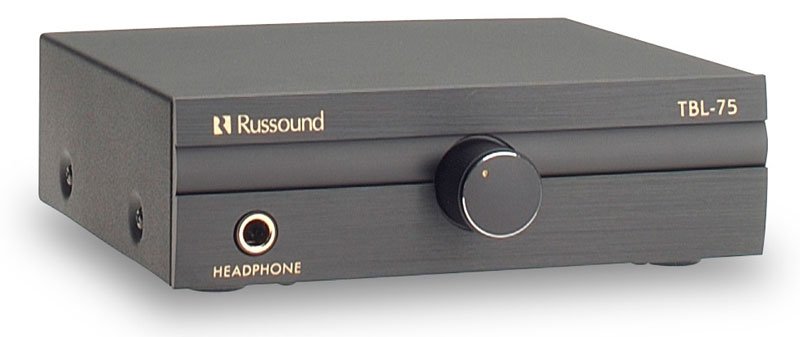

TBL-75 Front Image: TBL-75 Front.jpg
