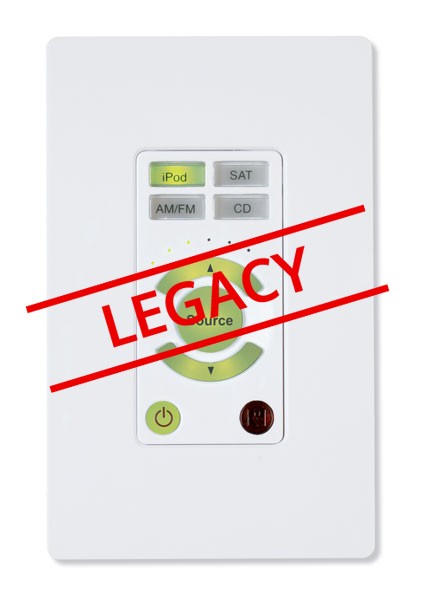

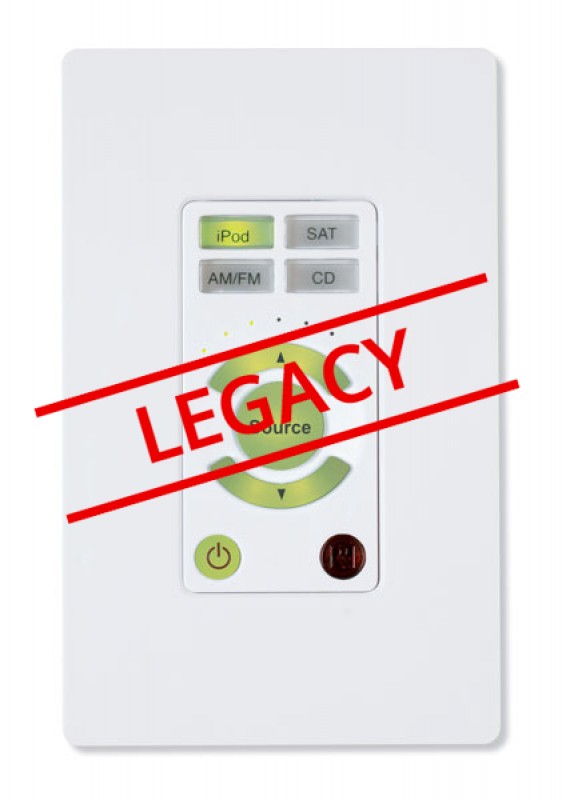

CA4-KP System Keypad

Russound's CA4-KP Keypad gives you simple control of your CA4 multiroom system. It includes 20 source labels to easily identify each system source, from a CD player to an iPod. The keypad also indicates volume and receives IR commands from a remote control.


You can adjust the bass, treble, balance, loudness and volume directly from each keypad, as well as setting source grouping, all on, all off, and party mode. The CA4-KP features green backlighting, and includes an IR receiver and IR confirmation through an LED status indicator.


  • Adjustable bass, treble, loudness, "party mode" and "all off" for total control from keypads
  • CAT-5 connectivity to wall port makes for easy installation
  • Available in five Decora colors, for an elegant and practical solution
  • Shipping Dimensions: 2.7" (W) x 4.5" (H) x 2.3" (D), (6.8 x 11.4 x 5.7 cm)
  • Shipping Weight: 0.2 lbs (0.1 kg)
  • Keypad Cables: CAT-5 - RJ-45 termination
  • Keypad Ports: 1
  • Max Cable Length: Wall Port to Keypad - 240' (73.2m)


ce stamp

CA4-KP Product Manual: CA4 Product Manual.pdf

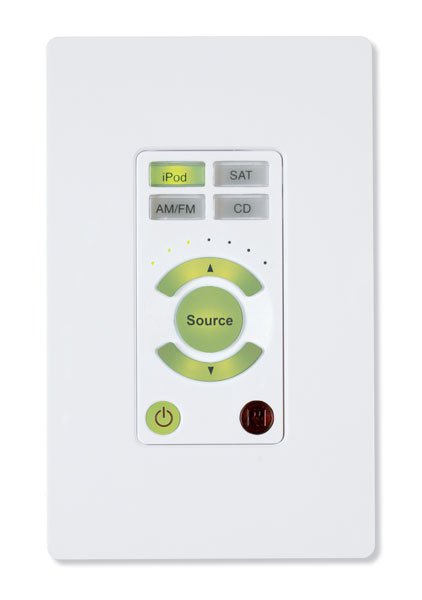

CA4-KP Front Image: CA4-KP.jpg
