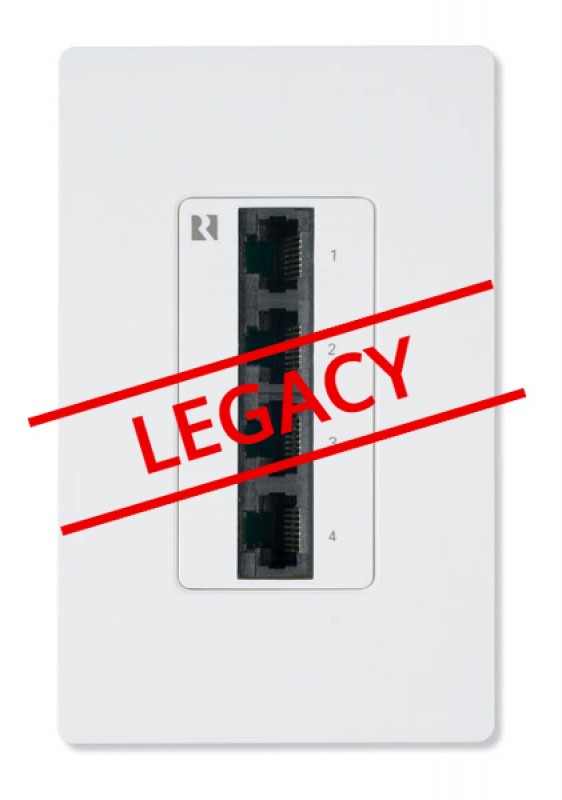

CA4-WP Wall Port

The CA4 Wall port allows for easy connection of a CA4 Multiroom Controller to the speaker and control wiring of the four system zones. Four dedicated CAT-5E cables connect the CA4 and Wall port, allowing for clean wire management in a neat, orderly bundle.


  • Wiring connections fit in a single gang work box
  • CAT-5 connectivity to controller makes for easy installation
  • Neat and clean wire management for an attractive installation


  •  Shipping Dimensions: 2.7" (W) x 4.4" (H) x 2.3" (D), (6.8 x 11.2 x 5.7 cm)
  • Shipping Weight: 0.3 lbs (0.1 kg)
  • Keypad Cables: CAT-5 - RJ-45 termination
  • Keypad Ports: 4
  • Max Cable Length:
    Wall Port to Controller: 6' (2m)
    Wall Port to Keypad: 240' (73.2m)
    Wall Port to Speaker: 240' (73.2m)
  • Speaker Connection(s): 4
  • Speaker Wire Size: 14-18 gauge - screw termination


ce stamp


CA4-WP Product Manual: CA4-WP_Product Manual.pdf

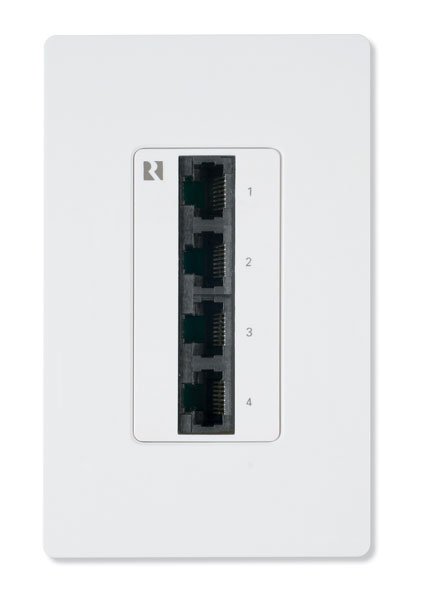

CA4-WP Front Image: CA4-WP.jpg
