Featured Products IW-620 6.5" Enhanced Performance In-Wall Loudspeaker

Category: Speakers

In-Wall Perfection

The IW-620 is the perfect in-wall choice for using in all of the primary listening areas of the home.  From the kitchen to the living room to the master bedroom, the IW-620 is a speaker that you'll spend hours and hours listening to.  The injection-molded polypropylene cone gives detailed bass response and the 1" pivoting silk tweeter can be aimed at your favorite listening spot.  The integrated one-piece baffle / woofer basket adds enhanced rigidity and complements the deep bass sound. The IW-620 is acoustically matched to the in-ceiling speakers the IC-620 and the IC-820 so you can mix and match with these two speaker sizes as needed.  The IW-620 uses the patented  SwiftLock® by Swarm tool-less installation system which lets the speaker be installed quickly and easily with the simple press of a button at each of the four mounting dogs.













SwiftLock How To

  • Features
  • Specifications
  • Documents
  • Product Images
  • The perfect choice for all primary listening areas of the home
  • Swiftlock® tool-less quick and easy installation
  • Integrated one-piece baffle / woofer basket design for enhanced rigidity and more efficient bass
  • Paintable edgeless grilles blend seamlessly into any décor
  • Powerful neodymium grille magnets for easy and secure attachment
  • Type: Two-way in-wall
  • Shipping Dimensions (Pair): H=10.39" (26.4 cm) x W=9.76" (24.8 cm) x L=14.41" (36.6 cm)
  • Shipping Weight (Pair): 9.6 lbs
  • Cutout Dimensions:  H=11.75" (29.85 cm) x W=7.64" (19.4 cm)
  • Frequency Response: 47 Hz - 20 kHz
  • Impedance: 8 ohms
  • Magnet Structure: 13 oz (0.383 kg)
  • Mounting Depth: 3.63" (9.21 cm)
  • Overall Dimensions: H=12.81" (32.54 cm) x W=8.71" (22.13 cm)
  • Recommended Power: 5 - 100 watts
  • Sensitivity: 90 dB @ 1w/1m

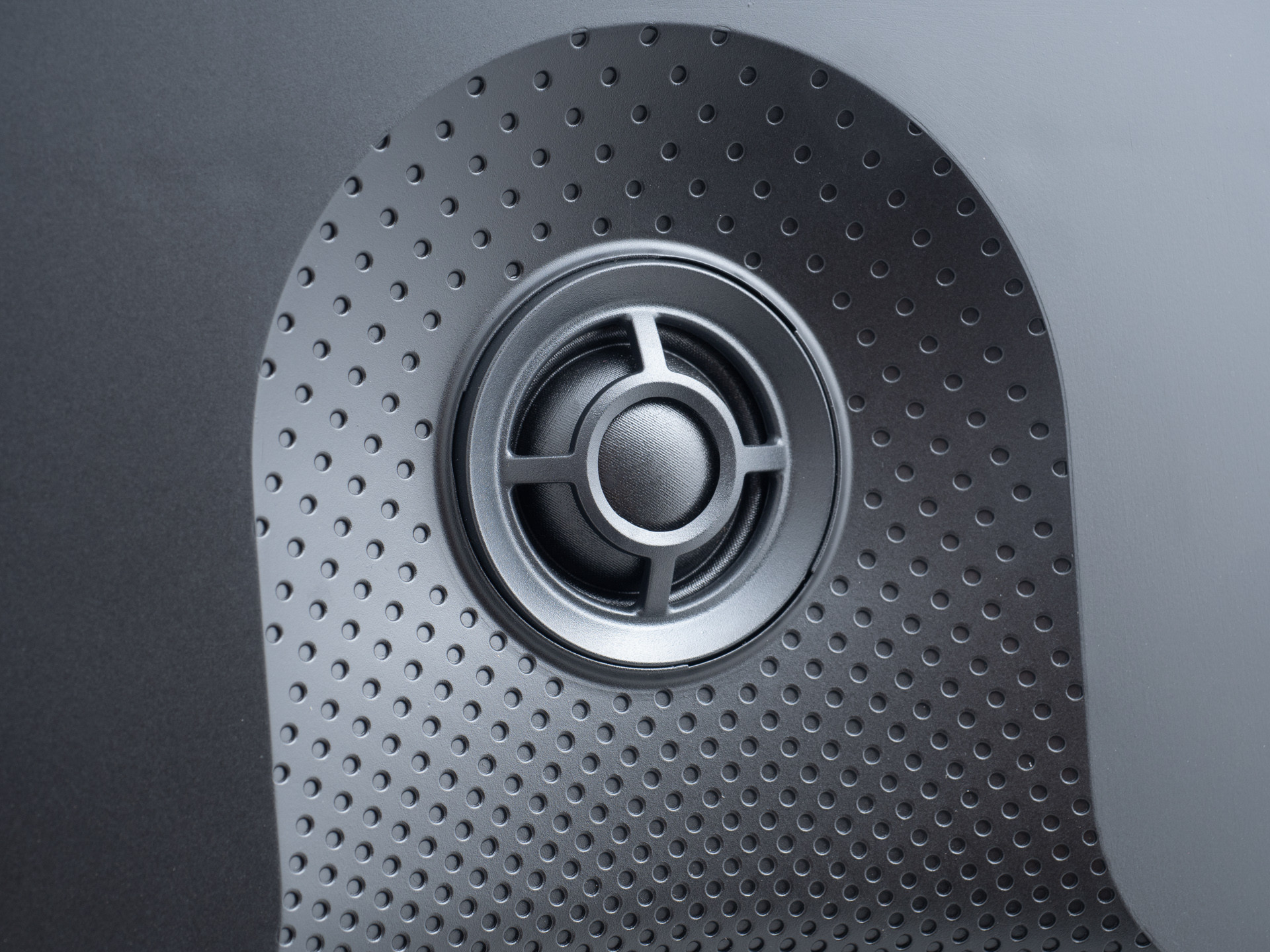

  • Tweeter: 1” / (25 mm) Pivoting Silk
  • Woofer: 6.5” / (16.51 cm) Injection-Molded Polypropylene cone



ce stamp

IW Speaker Product Manual: IW-Series Speaker Manual

IC/IW Speaker Product Brief: IC-Series Product Brief

IC/IW Comparison Sheet: IC-Series Comparison Sheet

IW-620 Front: IW-620 Front
