Russound - XZone70V Streaming Mixer Amplifier

XZone70V Streaming Mixer Amplifier

Category: XStream Products - Legacy

The Russound XZone70V features built-in XStream technology, enabling popular streaming content from the cloud, home network, AirPlay™ enabled tablets and phones - all from a single component. The built-in audio streamer offers the best audio content from the internet or even a user’s personal networked audio collection using DLNA. The rear panel even includes a USB port for playing content from a Flash Drive or an externally powered USB hard drive.

Limited Warranty 2 year 01

I tested the amp at a small restaurant and bar. The owner was practically giddy when I described what the system could do.
_{Fred Harding - CEPro}

To be perfectly frank, I’m not even sure where to begin an exploration of Russound’s XZone70V Streaming Mixer Amplifier. Dig in with a discussion of its feature set, and I’m liable to undersell its versatility. Launch with a chat about the various ways (and locations) in which it can be used, and… Well, you get the picture. Simply put, Russound’s latest product is a deft mix of utter simplicity and near-infinite possibilities that’s hard to capture in a pithy introductory paragraph.
_{Dennis Burger - Residential Systems}

xzone70v Services horizontal 2

The XZone70V is an all-in-one solution for all of your light commercial jobs.

Advanced audio products like the XStream™ Series XZone70V are only available through trained installation professionals, while offering users the opportunity to enjoy the exceptional audio quality and intuitive system operation that they expect and deserve.

The XZone70V is now voice controllable with Amazon Alexa.

Contact your Russound Certified Installer for details.

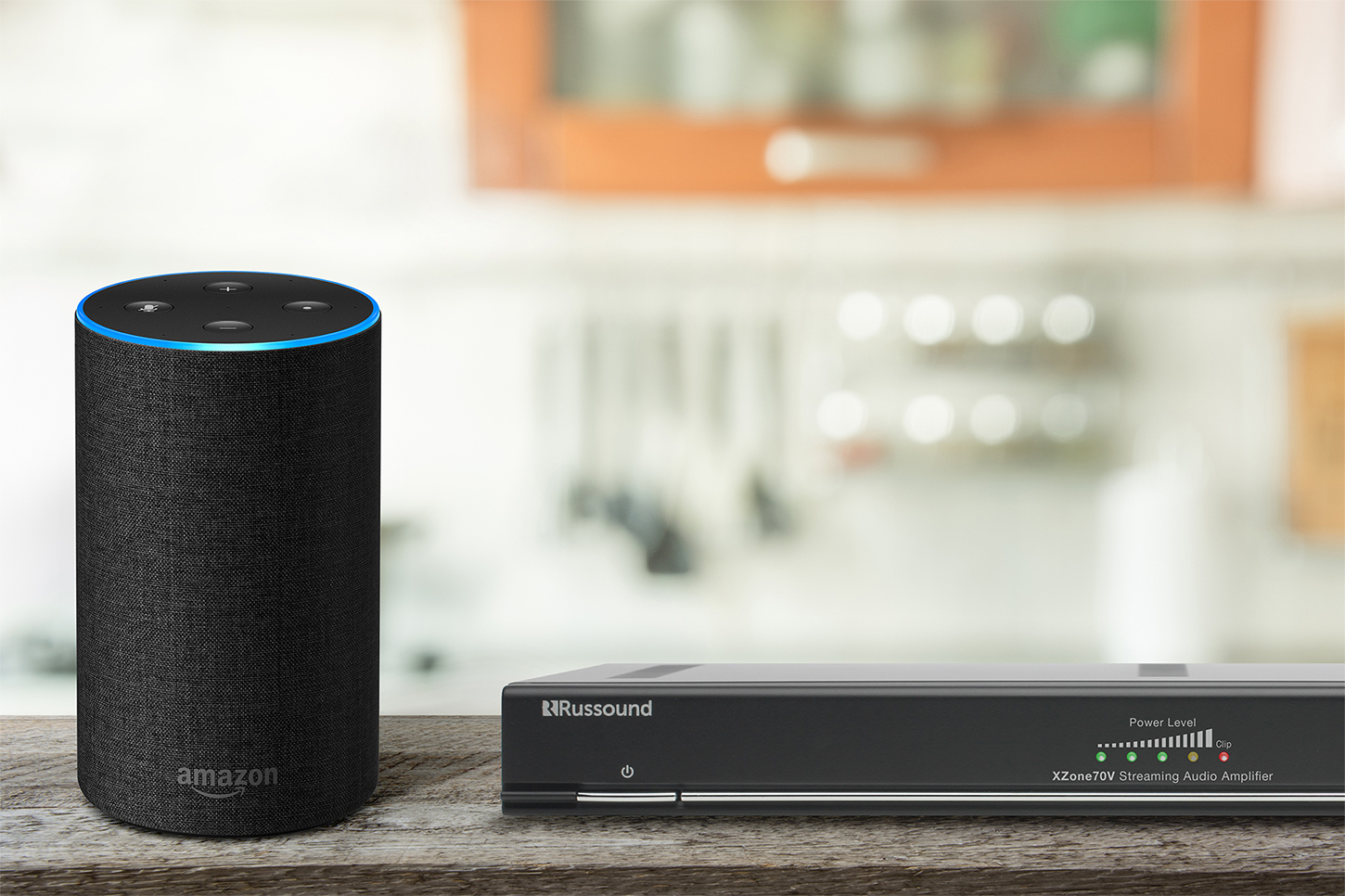

XZone70v Alexa Kitchen

70v/100v/4Ω operation
Powerful 300W output
Controllable by the XTS Touchscreen or the MyRussound App
Voice Control is available using Amazon Alexa
XStream™ complement of streaming sources including SiriusXM for Business, Spotify, Pandora, AirPlay and more
Mix and match with other XStream Series components for versatile system designs
Mic Input with phantom power support
USB Port for flash-based or hard drive audio
3.5mm auxiliary audio input

Shipping Dimensions: 20”W x 12.25”D x 6.5”H (59 x 34.2 x 14.6cm) single unit
Shipping Weight: 14.55 lbs (6.6 kg)
Output Power: 300W Max
Pre-Amp Output: Stereo Balanced
Output Modes: 70v/100v/4Ω
Number of Audio Channels: 1
Analog Audio Input: 3.5mm stereo (rear panel)
Hi-Res Audio Support: 24-bit/192kHz
Maximum number of XStream Series Zones in a System: 16
Number of Mic Inputs: 1
Frequency Response: 20Hz to 20kHz +1/-1dB at 4 Ohms
Power Requirements: 100-240V ~50/60Hz, 240W
Power Consumption in Off Mode: 0.09W
Product Dimensions: 17" W x 9" D x 1.7" H (43 x 22.8 x 4.3cm)
Supported Media Formats: MP3 (CBR, VBR), WAV (8, 16-bit), OGG Vorbis, FLAC (8, 16-bit). AAC, AAC+
THD: 1% THD+N at 300W into 4 ohms, 0.2% THD=N at 250W into 4 ohms

ce etl stamp 4

Product Manual: XZone70V Product Manual.pdf

Product Brief: Russound-Product Guide-XZone70V_Rev3.pdf

RIO Protocol for Driver Developers: RIO Protocol Version 1.4

XZone70V Overview

XZone70V Front: XZone70v front.jpg

XZone70V Rear: XZone70V rear.jpg

XZone70V Stacked: XZone70V stacked.jpg

Please note that this product must be installed by a Russound Certified Installer.
If you would like to locate an installer near you. Please feel free to use our Find a Dealer form.

RCI Program FAQs: RCI Program FAQ
