Bring your music outdoors with speakers that blend into your landscape
The AW4-LS-BR loudspeaker offers an elegant, scalable platform for providing high quality audio to any outdoor area in even the harshest environmental conditions. Specially designed to withstand both extreme heat and cold, the speakers work great from the humid, hot conditions of summertime in Florida to the bone-chilling cold of a Minnesota winter.

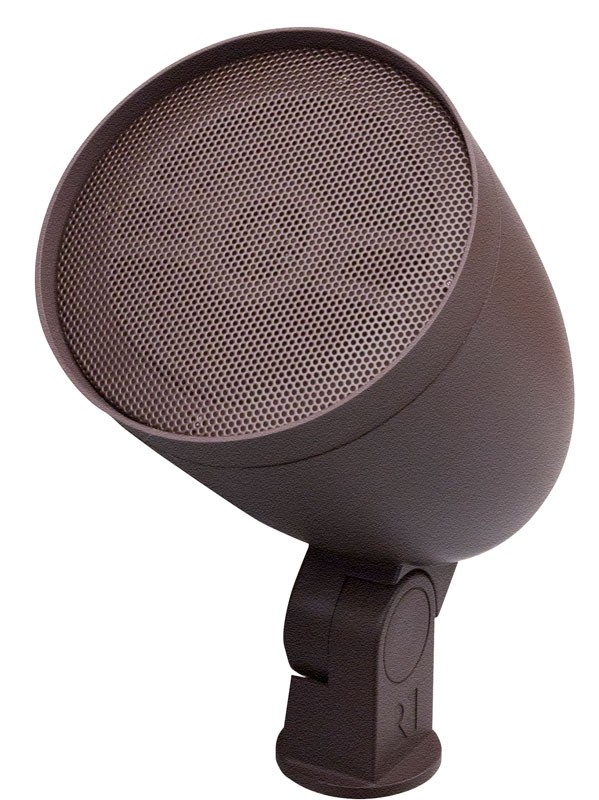

The key component of the Russound landscape audio system is the AW4-LS-BR, a compact 4” 2-way design satellite speaker that can be mounted anywhere in an outdoor space, from ground level to the treetops. Its small profile and subtle coloring allow it to blend into your landscape design while its high quality audio complement can add a new dimension of sound to your outdoor living space and bring your favorite music to your back yard, patio, pool, or lanai.
The AW4-LS-BR allows you to transform any outdoor space into an elegant, inviting space where the music you enjoy indoors can be easily enjoyed outdoors without the need for large and unsightly loudspeakers that clutter the view and limit your (and your landscape designer’s) choices when designing your perfect outdoor living areas.
- Designed for excellent sonic performance in any outdoor space

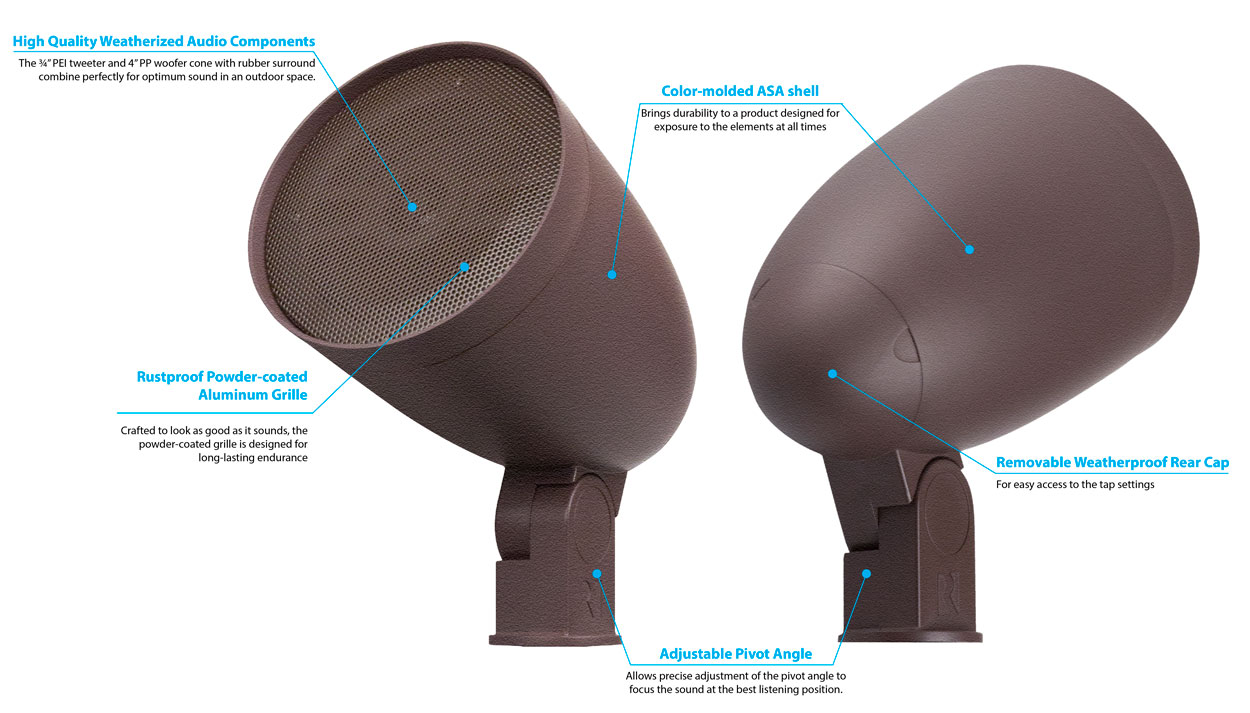

- Rust-proof aluminum grille and color-molded composite construction won’t chip, peel, or fade over time

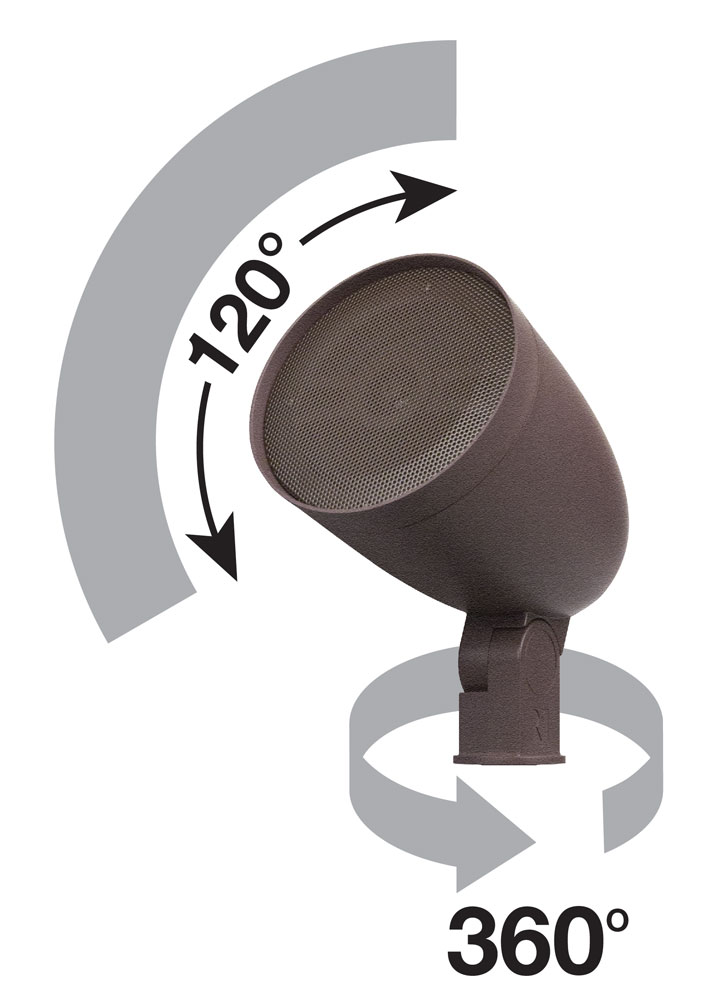

- 120° vertical directional adjustment allows sound to be directed where desired in any installation
- ASA-based material design for maximum UV protection and environmental endurance from -15°F to 160°F (-25°C to 70°C)
- Flexible 70v/100v/8Ω design with adjustable tap settings for use in any application
- Includes 11” mounting stake and waterproof wire nuts

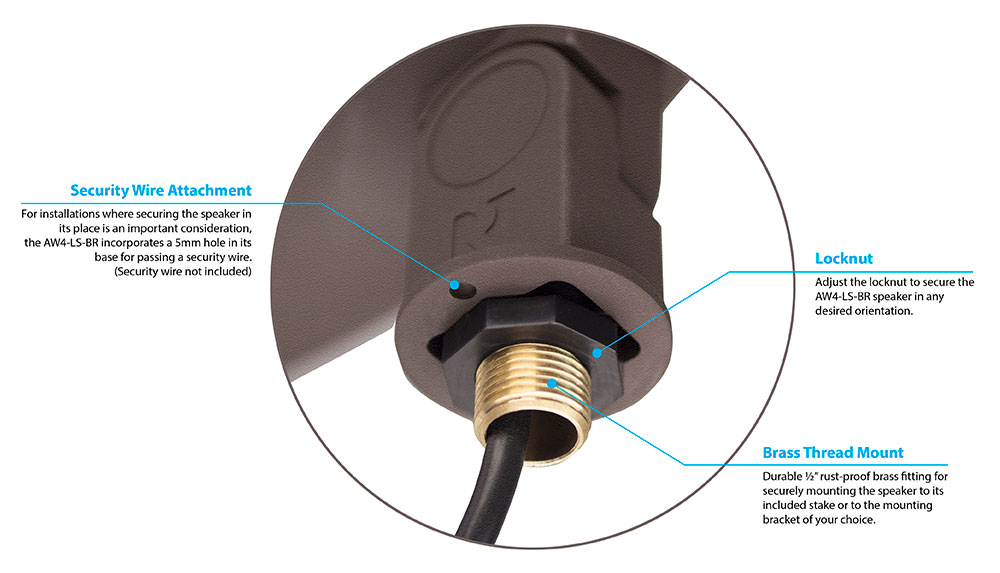

- Works with 1/2”-threaded landscape lighting mounts for limitless mounting options
- Five year limited warranty
- Type: 2-Way Landscape Speaker
- Woofer: 4” (102mm) PP Weatherproof Cone (rubber surround)
- Tweeter: 3/4’’ (19mm) Marine Grade PEI Dome
- Frequency Response: 80Hz - 20kHz
- Impedance: 8Ω - 70/100V

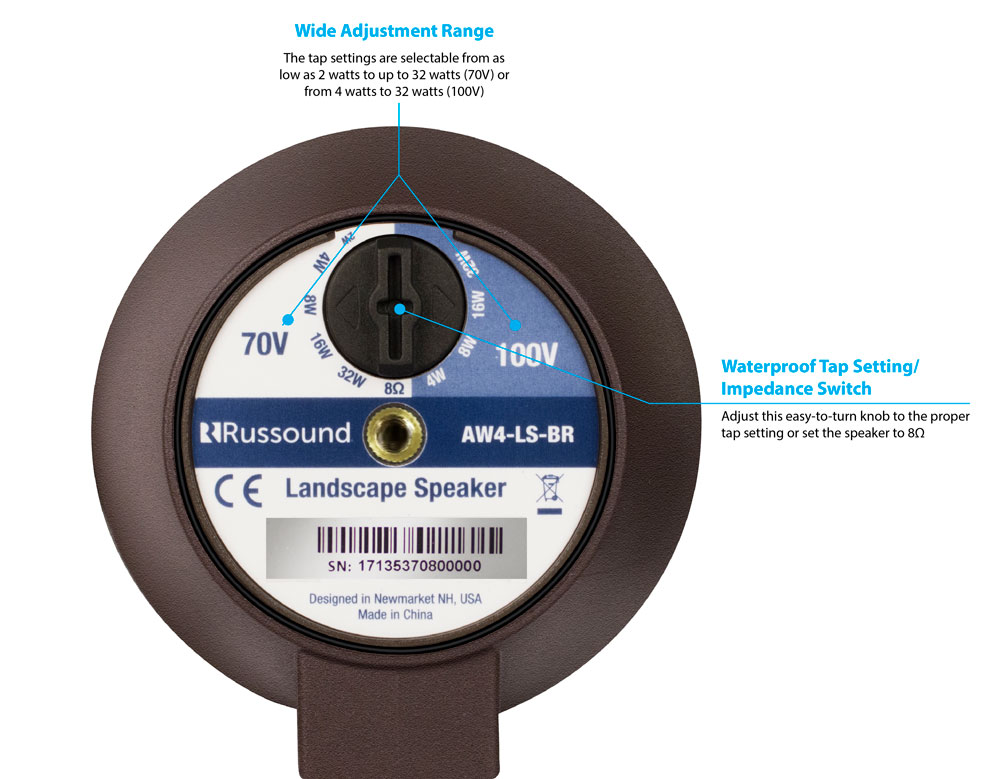

- Tap Settings: 70V – 2W, 4W, 8W, 16W, 32W; 100V – 4W, 8W, 16W, 32W; 8Ω Bypass
- Recommended Power for 8-ohm systems: 20~100W RMS
- SPL: 87dB @1w/1m
- Dimensions: 5’’dia x 7.6’’L x 7.7H’’ (without stake) (12.7 x 19.3 x 19.6 cm)
- Unit Weight: 3.6 lbs. (1.65 kg)
Product Manual: AW4-LS-BR Manual.pdf
Product Brief: Russound-Product Guide-AW4-LS-BR_Speaker.pdf
DSP Settings Table - Landscape Speakers: DSP Settings Table - Landscape Speakers 072022.pdf
DSP Settings for AW4-LS-BR used with Russound AW Series Subwoofers: DSP Settings for AW4-LS-BR used with Russound AW Series Subwoofers.pdf
DSP Settings for mixed models of AW Series Speakers and Subwoofers: DSP Settings for mixed models of AW Series Speakers and Subwoofers.pdf
Watch as tech expert Dr. Frank shows off Russound's outdoor landscape speakers for his fans in Chicago! The speakers take the spotlight at the 1:50 mark.
Russound's new outdoor landscape speakers were featured on CBS's "Great Day Washington" in the metro DC area. See what tech expert has to say, beginning at the 1:40 mark!
All sample XML files are set for using a stereo input signal (Left Channel to Input 1 and Right Channel to Input 2) and use Outputs 1 and 2 for stereo speakers and Output 3 for a mono subwoofer output. Feel free to make any adjustments to your particular DSP settings depending on your preferences or installation requirements.
DSP Settings for AW4-LS-BR used with Russound AW Series Subwoofers: AW4-LS-BR with AW Series Subwoofer miniDSP Example.xml
See table below
DSP Settings for mixed models of AW Series Speakers and Subwoofers: Mixed Models AW Series Speakers and Subwoofers miniDSP Example.xml
See table further down the page
Recommended DSP Settings when using AW4-LS-BR speakers with any Russound AW Series Subwoofer |
||
|
Settings for the AW4-LS-BR |
||
|
|
Left Channel of Audio |
Right Channel of Audio |
|
Input |
1 |
2 |
|
Output |
1 | 2 |
|

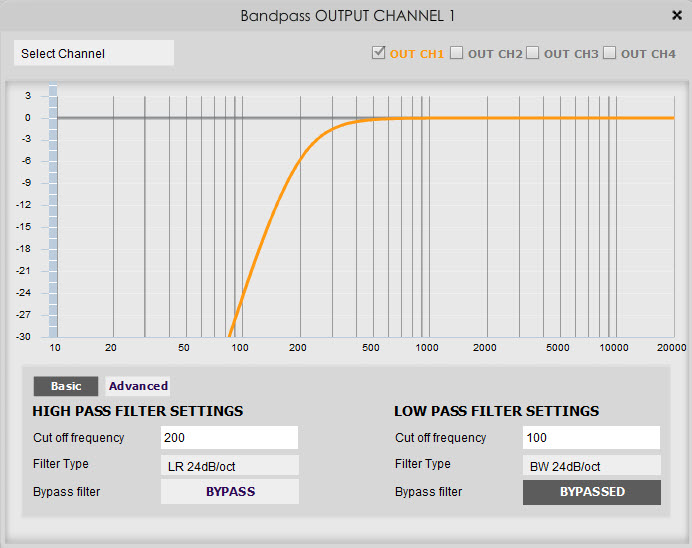

Crossover Filter |
24/dB/Octave LR* Highpass Filter set to 200Hz |
24/dB/Octave LR* Highpass Filter set to 200Hz |
|
Input Routing Configuration in miniDSP 2x4 HD (Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs) |
|
|
|
Bandpass Output Configuration to AW4-LS-BR Output 1(Left) and 2(Right) |
|
|
Settings for the AW Series Subwoofer |
||
| Crossover Filter |
48db/Octave BW* Highpass Filter set to 30Hz 24 dB/octave BW Lowpass Filter set to 200Hz |
|
|
Bandpass Output Configuration to AW Series Subwoofer Output 3 (It is outputting a summed mono signal of Inputs 1 and 2) |
|
|
|
Parametric Filter 1 |
Low Shelf Filter set to 115Hz, 5.0dB Gain with Q=1 | |
|
Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer |
|
|
|
Parametric Filter 2 |
Peak Filter set to 35Hz, 1.0dB Gain with Q=1 | |
|
Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer |
|
|
Recommended DSP Settings when mixing models of AW Series Speakers and Subwoofers |
||
|
Settings for the AW Series Speaker(s) |
||
|
|
Left Channel of Audio |
Right Channel of Audio |
|
Input |
1 |
2 |
|
Output |
1 |
2 |
|
Crossover Filter |
24/dB/Octave LR* Highpass Filter set to 150Hz |
24/dB/Octave LR* Highpass Filter set to 150Hz |
|
Input Routing Configuration in miniDSP 2x4 HD (Outputs 1 and 2 are stereo and Outputs 3 and 4 are summed mono outputs) |
|
|
|
Bandpass Output Configuration to AW6-LS-BR Output 1(Left) and 2(Right) |
|
|
Settings for the AW Series Subwoofer(s) |
||

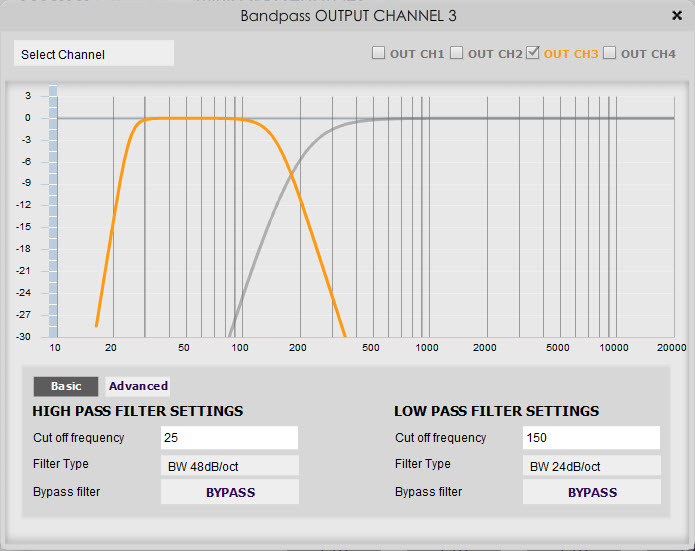

| Crossover Filter |
48db/Octave BW* Highpass Filter set to 25Hz 24 dB/octave BW Lowpass Filter set to 150Hz |
|
|
Bandpass Output Configuration to AW Series Subwoofer
Output 3 (It is outputting a summed mono signal of Inputs 1 and 2) |
|
|

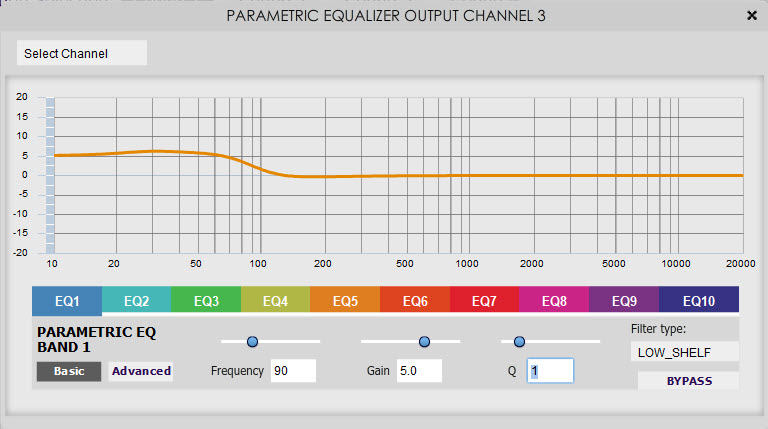

| Parametric Filter 1 |
Low Shelf Filter set to 90Hz, 5.0dB Gain with Q=1 |
|
|
Parametric EQ Band 1 for Output 3 for the AW Series Subwoofer |
|
|

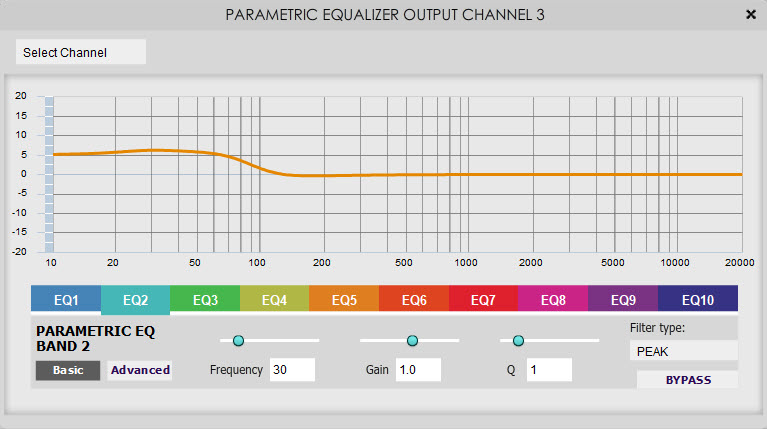

| Parametric Filter 2 |
Peak Filter set to 30Hz, 1.0dB Gain with Q=1 |
|
|
Parametric EQ Band 2 for Output 3 for the AW Series Subwoofer |
|
|
